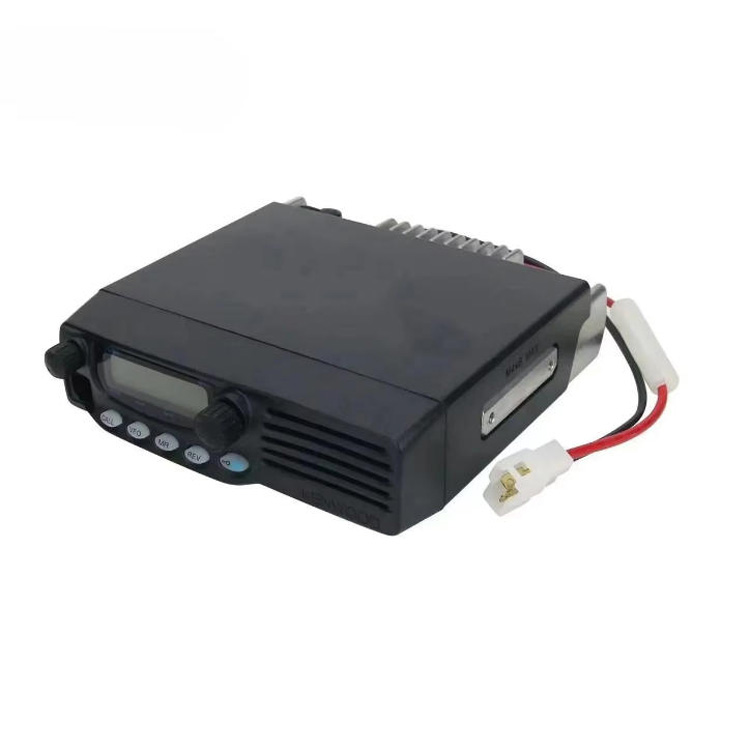

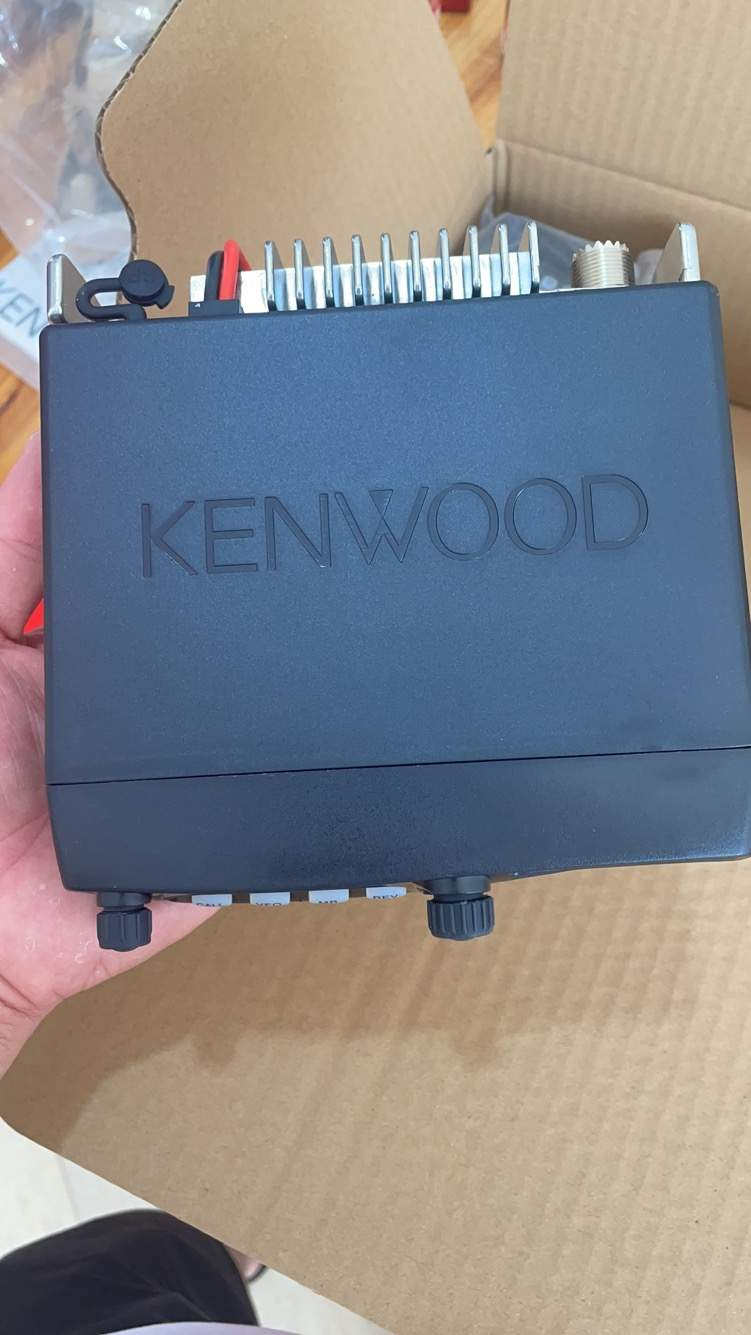

TM-271A 136-174MHz FM Transceiver TM-471A 400-470MHz Mobile Radio Vehicle Mounted for Kenwood TM271 TM471 60W Walkie Talkie

Features:
- 60W high rf power output. Despite its size, the TM-271A can provide an impressive 60 watts of RF power, with a choice of High/Low output.
- US MIL-STD 810 C/D/E/F. Built tough to take rough treatment in its stride, the TM-271A meets the strict U.S. Department of Defense MIL-STD 810 C, D, E and the latest F environmental standards for vibration and shock.
- Alphanumeric LCD and illuminated keypad. Capable of displaying up to 6 large alphanumeric characters, the positive-type green LCD display comes with a 32-step brightness control to suit all driving conditions. Also, the front panel and microphone keypads are both illuminated for ease of use. Note that keys for only the 5 most frequently used functions are arranged on the front panel for simplicity (other functions can be quickly accessed via menu).

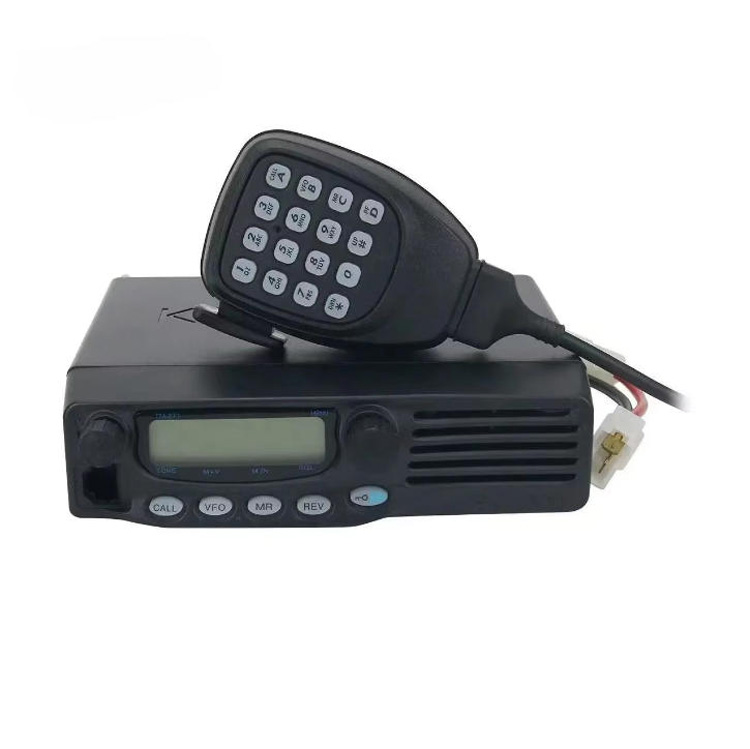

- DTMF microphone. The TM-271A is supplied with a DTMF microphone as standard.
- High-quality front speaker. The large oval (2.28″ x 1.38″) speaker mounted in the front panel provides excellent clarity.
- 200 memory channels plus 1 call-channel. Each of the 200 memory channels can be used to store, transmit, and receive frequencies
independently. Additionally, memory data can be edited and stored on your computer using MCP-1A Memory Control software.
- Memory name function. At-a-glance identification of 100 memory channels is possible with up to 6 alphanumeric characters per channel. Up to 200 channels are available if the memory name function is not used.
- Multiple scan functions. For maximum versatility, the TM-271A offers several scan functions, including VFO (band) scan, all memory scan, program scan, memory group scan (group scan), call scan, tone/CTCSS scan, DCS scan and priority scan, which checks a priority channel every 3 seconds. TO (Time-operated), CO (carrier-operated) and seek scan resume modes are also provided.
- CTCSS & DCS encoder/decoder. The built-in CTCSS and DCS encoder/decoder enables operation of the 42 CTCSS subtone frequencies and 104 DCS subtone codes.
- High frequency stability. Thanks to the built-in TCXO, frequency stability is ±2.5ppm, while frequency drift is less than ±365Hz at -20°C to 60°C.

Other Features:
- Power-on Message
- Wide/Narrow Deviation Selection (per channel)
- 1750Hz Tone Burst
- Automatic Simplex Checker
- Reverse Repeater Checker
- Automatic Repeater Offset
- Beep On/Off
- Automatic Power Off
- Time Out Timer
- Channel Display Mode
- Busy Channel Lock-out
- Memory Channel Lock-out
- MR-shift
- Direct Frequency Enter
- Key Lock

Specifications:
General:
- Frequency Range: TX: 144-148MHz; RX: 136-174MHz
- Mode: F3E (FM)
- Power Requirement: 13.8V DC ±15%, negative ground
- Current Drain Transmit: Less than 13.0A (High), less than 8.0 A (Low)
- Current Drain Receive: Less than 1.0 A
- Operation Temperature Range: -20℃ to 60℃
- Antenna Impedance: 50 ohms
- Microphone Impedance: 600 ohms
- Frequency Tolerance: ±2.5 ppm (-20℃ to 60℃)
- Dimensions (W x H x D) (Projections excluded): 6.30″ x 1.69″ x 5.39″ (160 x 43 x 137mm)
- Dimensions (W x H x D) (Projections included): 6.33″ x 1.69″ x 6.65″ (161 x 43 x 169mm)
- Weight: 2.6lbs (1.2 kg)

Transmitter:
- RF Output Power (approx.): HI: 60W; LO: 25W
- Modulation: Reactance modulation
- Maximum Frequency Deviation: ±5 kHz
- Modulation Distortion: Less than 3% (300MHz~3KHz)

Receiver:
- Circuitry: Double Conversion Superheterodyne
- Intermediate Frequency: 1st IF: 49.95MHz; 2nd IF: 450kHz
- Sensitivity (12dB SINAD): Less than 0.18 μV (Narrow: less than 0.22 μV)
- Squelch Sensitivity: Less than 0.1μV
- Selectivity: -6dB: More than 12 kHz (Narrow: more than 10kHz); -60dB: Less than 30 kHz (Narrow: less than 24kHz)
- Audio Output Power: More than 2W (5% distortion)

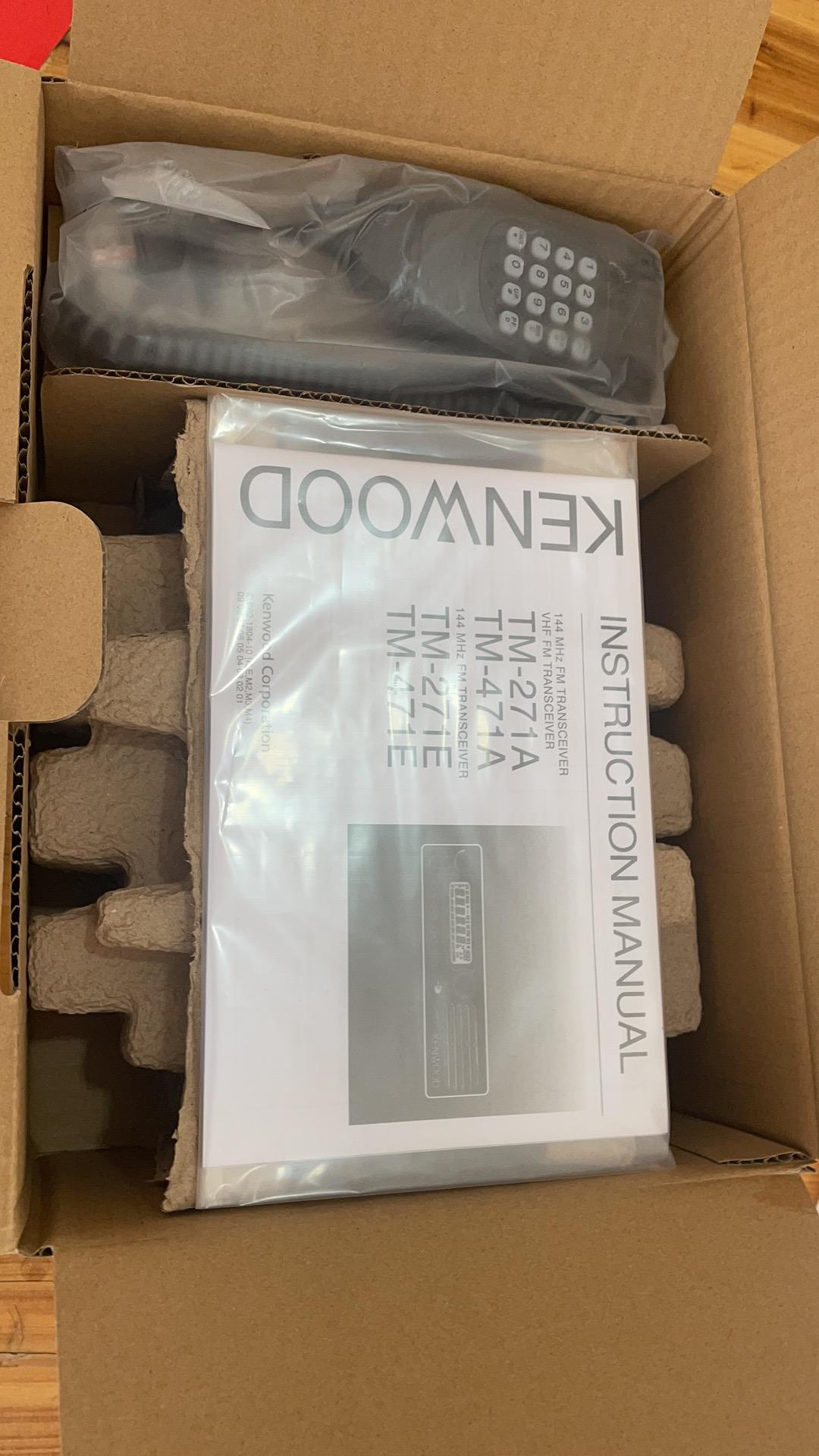

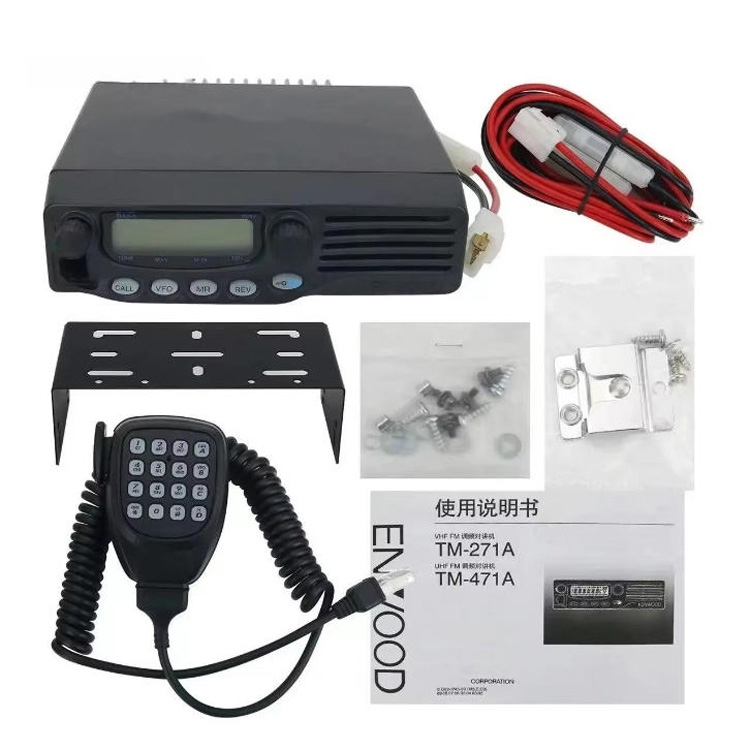

Package Included:
- 1 x Mobile Radio
- 1 x Set of Bracket For Mobile Radio
- 1 x Handheld Mic
- 1 x Power Cord
- 1 x User Manual
- 1 x Bag of Screws
