Baofeng UV-5R Mini 5W Two Way Radio Amateur Mini Walkie Talkie Dual Band Type C Charging APP Programming

Baofeng UV-5R Mini 5W Two Way Radio Amateur Mini Walkie Talkie Dual Band Type C Charging APP Programming

Specifications:
Transmission Frequency: VHF 136-174MHz & UHF 400-480MHz

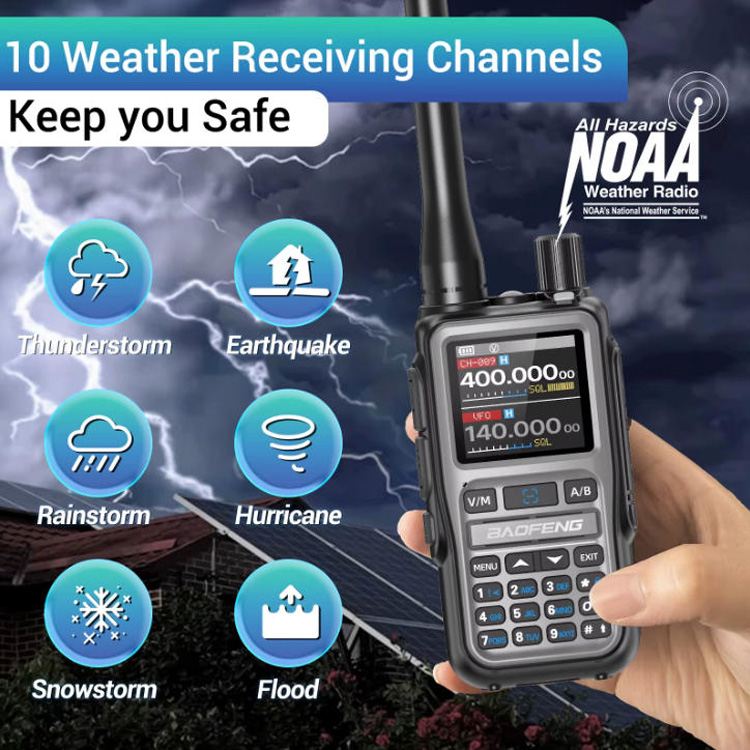

Receiver Frequency: FM 76–108 MHz, Airband 108–136 MHz, VHF 136–174 MHz, UHF 350–390 MHz / 400–520 MHz, NOAA[US Only]
Channel Spacing: 25.0 KHz (Wide) / 12.5 KHz (Narrow)
Memory Channels: 999
Output Power: 5/2W(High/Low)
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Receive Sensitivity: 0.25 µV (12 dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380 mA
Antenna Impedance: 50 Ω
Connection for Accessories: 2-pin Kenwood jack
APP Support: OLA Radio(iOS/Android)
Battery Capacity:1800 mAh
Dimensions (No Antenna): 4.3 × 2.0 × 1.5 in / 108 × 52 × 37 mm
Weight: 7.1 oz / 200 g (battery included)

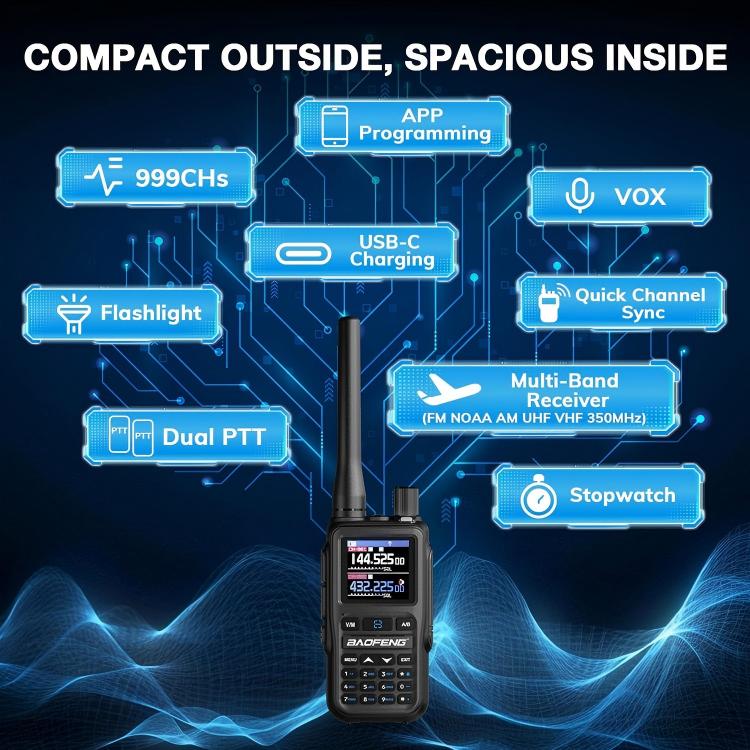

Main Features:
Dual Band, Dual Standby
Dual PTT
APP & CHIRP Programming
One-Key Frequency Reverse
Easy Channel Clone
Custom Side Key
1.44″ Color Display
DTMF
Frequency hopping
Stopwatch
Flashlight
Ultra-Compact Design
Full keyboard Input

Key Features:
Ultra-Compact Size: Fits in a pocket, making it ideal for hiking, events, or backup communication.
Dual PTT: Separate PTT (Push-to-Talk) buttons for VFO A and VFO B for easier simultaneous monitoring/transmitting.

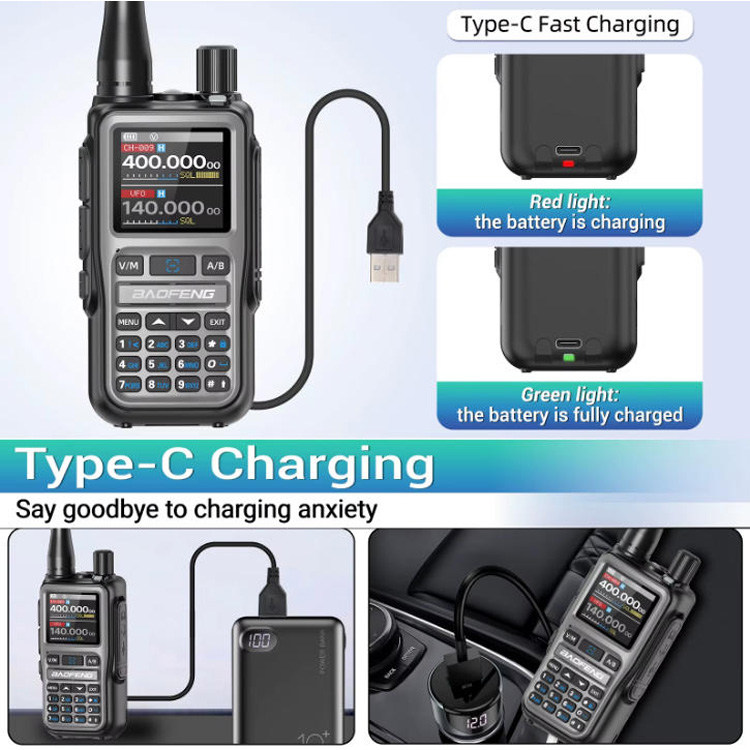

USB-C Charging: Convenient charging from power banks or car adapters.

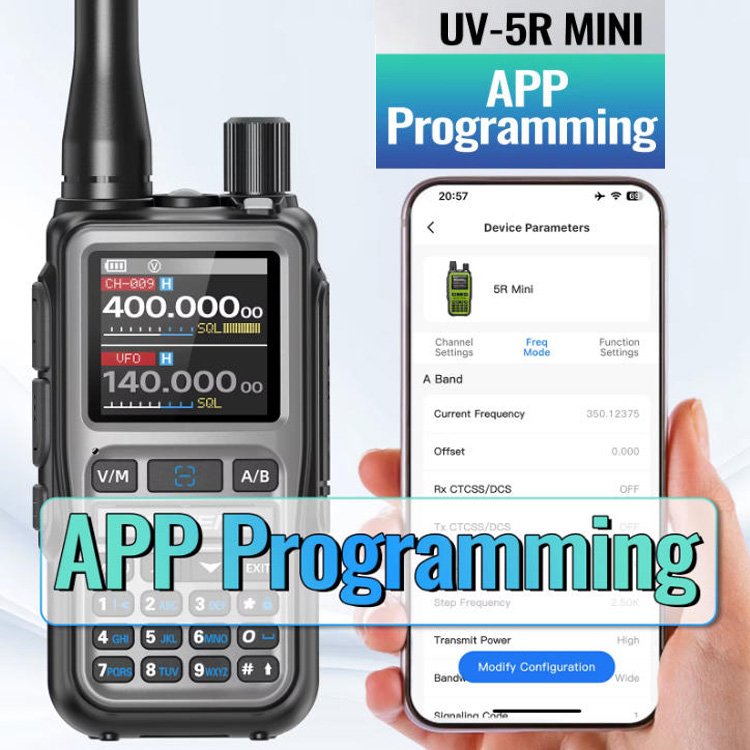

Wireless Programming: Bluetooth connectivity for phone/tablet programming.
999 Channels: High memory capacity.
Multi-Band Reception: Includes FM broadcast and AM airband reception.
Programmable Keys: Customizable side key for one-touch functions like scanning or flashlight.

Programming & Usage:
Methods: Keypad, Bluetooth App, CPS (Computer Programming Software), or CHIRP.
License Required: For transmission on ham bands, an amateur radio license is necessary.
Dual Standby: Monitors two frequencies but doesn’t function as a cross-band repeater.

Who it’s For:
Hikers, backpackers, event staff, preppers, and anyone needing a small, versatile radio for VHF/UHF communication.

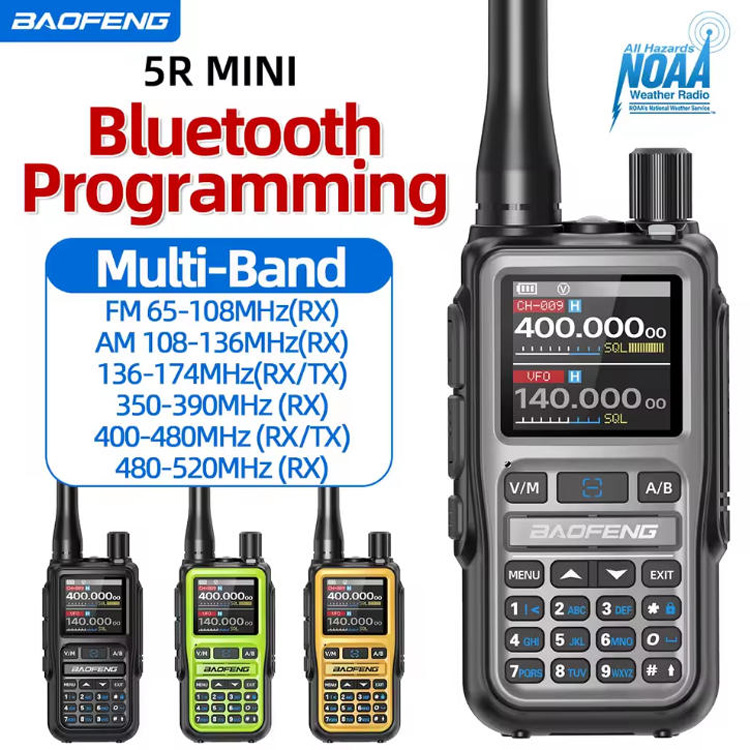

[Multi Band Frequency]
FM:65-108 MHz(RX)| AM:108-136 MHz(Rx) | 136-174 MHZ(TX/RX) | 350-390 MHz(RX) | 400-480 MHz(TX/RX) | 480-520MHz(RX)
