This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
The Baofeng UV-5R is one of the most popular dual band handheld two way radios on the market worldwide.The Baofeng UV-5R Two-Way Radio is designed to provide reliable, clean and trouble-free communication.
Baofeng UV-5R is an economical Dual Band UHF/VHF Amateur Radio that’s extremely compact. With 128 channel capacity and up to 12 hours of battery life, the UV-5R is a good choice for ham radio operators who need mobility at low cost.
The Baofeng UV-5R series of radios will receive and transmit on FM modulated VHF frequencies between 136-174MHZ and on FM modulated UHF frequencies between 400-480/520MHz. It will also receive only (but not transmit) on FM modulated VHF frequencies between 65 – 108 MHz.
- Mainfeature
-
Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension (W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
Transmitter Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7?W
Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: <=1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mvIntermediation distortion: <10%
- Application&scenarios
-
- Specification
-
Hot Spots
Dual band / dual display / dual standby
A/B band independent operation(UV UU VV)
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan
Emergency Alarm
Time-out Timer (TOT)
0~9 grades VOX selectable
PTT & ANI ID
FM radio and 25 stations storage
Voice commanding
50 CTCSS/104 DCS
High/Low TX power selectable
Busy channel lock-out(BCLO)
DTMF function
OFF SET function
Wide/Narrow Band(25kHz/12.5kHz)
Yes
VOX function
Yes
Busy lockout function
Yes
Frequency step
Yes
2.5/5/6.25/10/12.5/25KHz
Scanning function
Yes
Monitor function
Yes
Time-out Timer (TOT) function
Yes
LCD display
Yes
Dual display
Yes
Battery voltage display
Yes
Channel name display editing
Yes
Signal strength indicator
Yes
Keypad lock function
Yes
Built-in Led torch
Yes
FM radio
Yes
Wire clone function
Yes
Emergency alarm function
Yes
Low battery alarm
Yes
Power saving function
Yes
High/Low TX power selectable
Yes
5W/1W
ROGER SET
Yes
Chinese English voice prompt
Yes
PC software programmable
Yes
Rated Voltage
7.4V DC±10%
Output power
≤ 5W
Battery type
Li-ion battery
Battery capacity
1800mAh
Working temperature
-20~+50°C
Antenna Impedance
50Ω
Weight
255g
Dimension(L×W×H)
58×32×110mm(Not Antenna)
Specification
Frequency stability
±2.5ppm
Carier wave tolerance
5ppm
Modulation
16kΦF3E / 11kΦF3E
Max frequency deviation
< 5kHz(Wide)
< 2.5kHz(Narrow)
Modulation character
6 dB per fold frequency patch
Emission current
< 1.6A(5W)
CTCSS / DCS
0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)
Sensitivity
< 0.16μV(12dB SINAD)
Silent sensitivity
< 0.2μV
Intermediation Distortion
<10%
Inter modulation
8-12mv
Adjacent channel selectivity( wide/narrow)
<-65dB(Wide) <-60dB(Narrow)

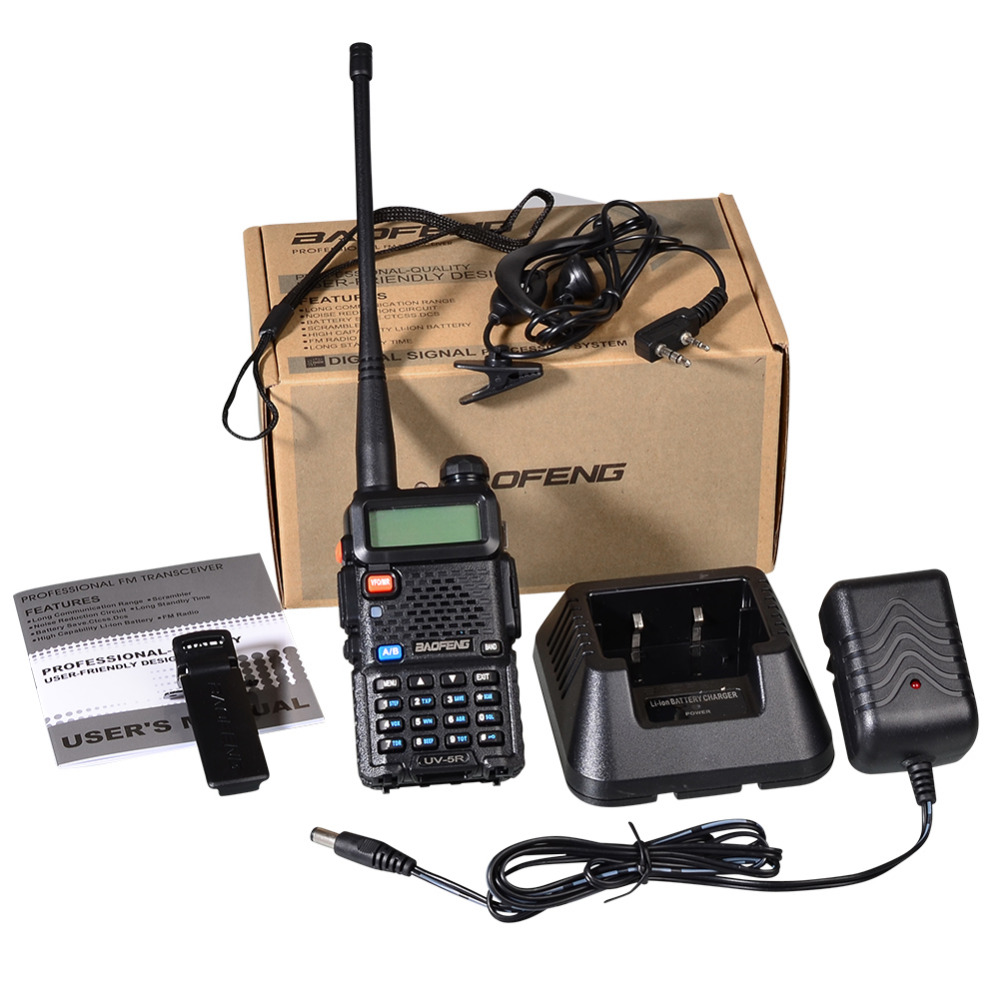

- Parts/Warranty
-
1 x Baofeng UV-5R 136-174/400-520MHz Dual-Band FM Two-way Ham Radio
1 x 1800mAh Li-ion Battery
1 x Antenna
1 x Charger
1 x Belt Clip
1 x User’s Manual
