BTS Coupled +40dBm Multi-band Muti-system Fiber Optic Repeater Amplifier Support DMR/TETRA/LTE/NR

Short Description:

Kingtone JIMTOM® Fiber Optic Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than setup a new Base Station (BTS). Main operation of RF Repeaters system: For the down link, signals from BTS is fed to Master Unit(MU), the MU then convert RF signal to laser signal then feed to fiber to transmit to Remote Unit(RU). RU then convert laser signal to RF signal, and use Power Amplifier to amplify to high power to IBS or coverage antenna. For the up link, Is...


  • Brand: Kingtone/JIMTOM
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Warranty: 12months
    • Download as PDF

    Product Detail

    Product Tags

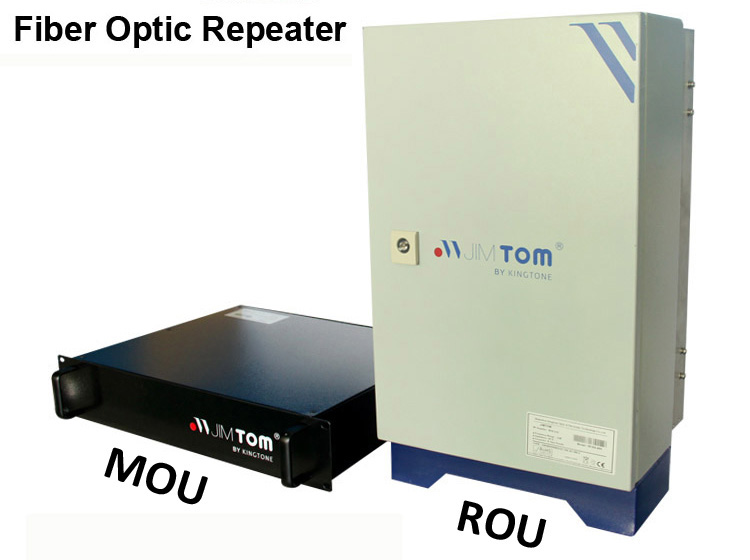

    BTS-Access-FOR.1UHF BDA

    Kingtone JIMTOM® Fiber Optic Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than setup a new Base Station (BTS). Main operation of RF Repeaters system: For the down link, signals from BTS is fed to Master Unit(MU), the MU then convert RF signal to laser signal then feed to fiber to transmit to Remote Unit(RU). RU then convert laser signal to RF signal, and use Power Amplifier to amplify to high power to IBS or coverage antenna. For the up link, Is a reverse process, signals from user mobile is fed to MU’s MS port. the signal is amplified by low noise amplifier to improve signal strength. Then the signals is fed to RF fiber optical module then converted to laser signals, then the laser signal is transmit to MU, the laser signal from RU is convert to RF signal by RF optical transceiver. Then the RF signals are amplified to more strength signals fed to BTS.

    Main Features

    ◇ High level, high availability, convenient for maintain;

    ◇ Support star topology;

    ◇ High level, high availability, convenient for maintain;

    ◇ Internal adopt intelligent monitoring, is convenient to locate the faults for maintain;

    ◇ Low power consumption, excellent heat dissipation;

    ◇ High linearity PA, high system gain;

    ◇ Support DMR/TETRA/LTE/NR muti-band, multi-system in one system;

    ◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;

    ◇ Compact size, flexible for installation and relocation;

    ◇ Waterproof design for all-weather installation;

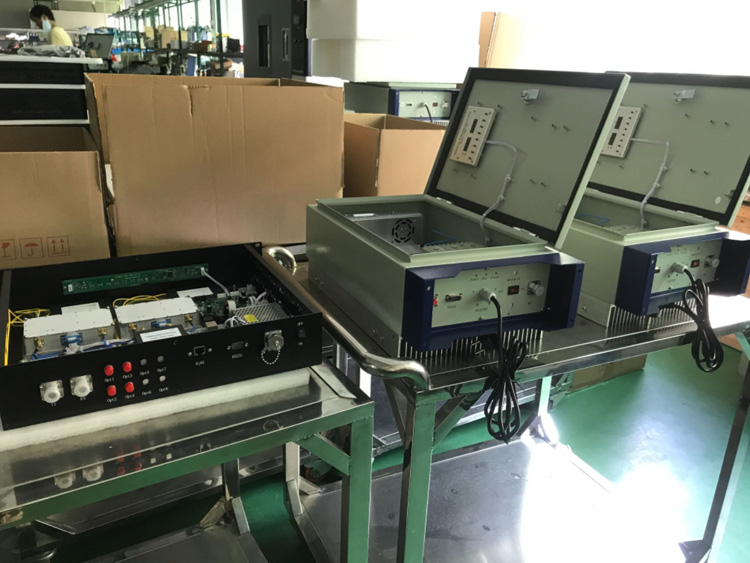

    BTS-Access-FORBTS-Type-1MOU-with-2-ROU

    Applications

        To expand signal coverage of fill signal blind area where signal is weak or unavailable.

        Outdoor:  Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

    Indoor:  Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.

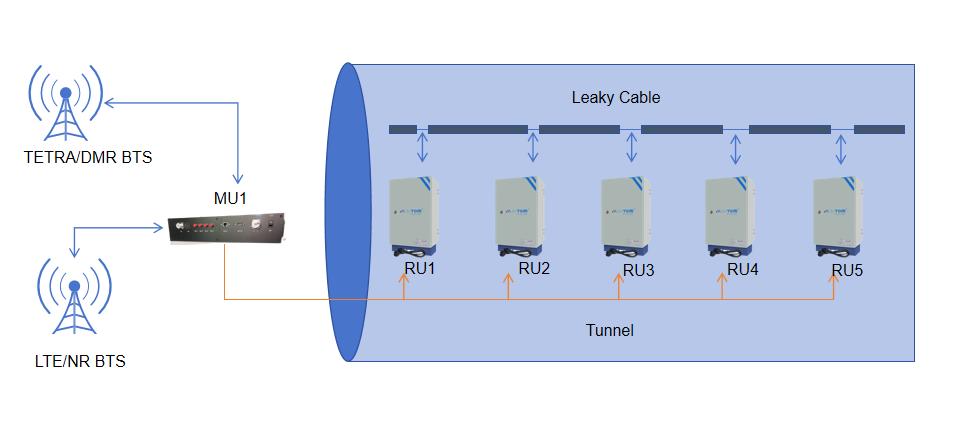

    Multiband System Diagram

    Specifications

    1.Master Unit(MU) Technical Specification

    Items

    Testing Condition

    Technical Specification

    Memo

    Uplink

    Downlink

    Frequency Range

    TETRA

    Working in-band

    410-414MHz

    420-424MHz

    Customizable

    LTE

    Working in-band

    450-455MHz

    460-465MHz

    Customizable

    Max Bandwidth

    TETRA

    Working in-band

    4MHz

    Customizable

    LTE

    Working in-band

    5MHz

    Customizable

    Input Power

    TETRA

    Working in-band

    -

    ≤0dBm

    LTE

    Working in-band

    -

    ≤0dBm

    Output Power

    TETRA

    Working in-band

    -10dBm

    -

    LTE

    Working in-band

    -10dBm

    -

    Spurious emissions

    9 kHz to 1 GHz

    ≤ -36 dBm (250 nW)

     1 GHz to 12,75 GHz

    ≤ -30 dBm (1μW)

    Max RF Input level

    Working in-band

    -

    +5dBm

    Min RF Input level

    Working in-band

    -

    -70dBm

    Max RF input without damage

    Working in-band

    -

    10dBm

    VSWR

    Working in-band

    ≤1.5

    RF Connector

    Working in-band

    N-Female

    Optical Specifications

    Optical Output Power

    -

    -3±2 dBm

    Optical Max Input power

    +4dBm

    -

    Optical Input damage level

    +10dBm

    -

    Optical length

    DL: 1310nm, UL: 1550nm

    Fiber

    Single-mode

    Optical Loss

    ≤10dB /Includes the loss of the optical splitter

    Optical Connector

    LC/PC

    Nos Of Optical Ports

    1, 1RU, 1 fiber cores for Each RU

    Max RU Drive Capability
    1. Daisy Chain topology: 4*8=32
    2. Ring topology: 2*8=16
    3. Star Topology: 4*1=4

    Supported Network Topology

    Daisy Chain, Ring, Star

    Power Supply and Mechanical Specifications

    Power Supply

    AC220V±60V,45~55Hz

    Power Redundancy

    Yes

    Option

    Dimension

    435mm*340mm*90mm

    Weight

    13kg

    Max. Power Consumption

    ≤ 70 W @Total

    Operating Temperature

    -5~+75℃

    Storage Temperature

    -5~+75℃

    Operating Humidity

    ≤95%

    Environmental Class

    IP45

    RF Connector

    N-Female, 50ohm

    MTBF

    ≥50000 hours

    Power LED

    Power Indicator

    Alarm LED

    Alarm Indicator

    Software system Specifications

    Local Monitoring System

    GUI base

    Using RJ45/RS232 cable

    Parameter setting

    Gain UL& DL

    Status monitoring (Alarm & signal level)

    Power supply, input/output power (UL/DL), temperature, VSWR

    Firmware download

    Yes

    Repeater restart function

    Yes

    Battery

    Yes

    Remote Monitoring System

    SMS or GPRS Modem

    Configuration of Server

    Remote Monitoring Server/Server

    GUI base

    Parameter setting: Gain UL& DL

    Status monitoring (Alarm & signal level): Power supply, input/output power (UL/DL),VSWR

    Repeater restart function

    2.Remote Unit Technical Specification

    Items

    Testing Condition

    Technical Specification



    Uplink

    Downlink

    Frequency Range

    TETRA

    Working in-band

    410-414MHz

    420-424MHz

    Customizable

    LTE

    Working in-band

    450-455MHz

    460-465MHz

    Customizable

    Max Bandwidth

    TETRA

    Working in-band

    4MHz

    Customizable

    LTE

    Working in-band

    5MHz

    Customizable

    Output Power(Max)

    TETRA

    Working in-band

    -

    +40dBm

    Customizable

    LTE

    Working in-band

    -

    +40dBm

    Customizable

    Max Input without damage

    Working in-band

    +10dBm

    -

    Max Input RF level

    Working in-band

    -30dBm

    -

    Min Input RF level

    Working in-band

    -107dBm

    -

    Noise Figure

    Working in-band

    ≤6dB

    -

    Gain Adjustable Range/Step

    Working in-band

    ≥25dB/1dB

    Gain Adjustable Error

    Working in-band

    Gain adjustable range is 0~20dB, error≤1dB; ≥21dB, error≤1.5dB

    Ripple

    Working in-band

    ≤6dB in bandwidth

    Spurious emissions

    9 kHz to 1 GHz

    ≤ -36 dBm (250 nW)

    1 GHz to 12,75 GHz

    ≤ -30 dBm (1μW)

    ALC

    Working in-band

    When adding ≤10dB at max. Output level, output variation ≤±2dB, When adding >10dB, output variation ≤±2dB or be off.

    VSWR

    Working in-band

    ≤1.5

    Group Delay

    Working in-band

    ≤1.0μs

    Optical Specifications

    Optical Output Power

    -3±2dBm

    Optical length

    DL: 1310nm, UL: 1550nm

    Fiber

    Single-mode

    Optical Loss

    ≤10dB /Includes the loss of the optical splitter

    Optical Connector

    LC/PC

    Optical Max input power

    +4dBm

    Optical input power without damage

    +10dBm

    BTS signals redundancy

    Yes

    Option

    Power Supply and Mechanical Specifications

    Power Supply

    AC220V±60V,45~55Hz

    Power Redundancy

    Yes

    Dimension

    670m’m*420m’m*225m’m

    Weight

    <41kg

    Max. Power Consumption

    ≤300 W @Total

    Operating Temperature

     -25~+55℃

    Storage Temperature

    -25 oC ~ +75 oC

    Operating Humidity

     ≤95%

    Grounding kit

    Yes

    Environmental Class

     IP65

    Connector

    Working in-band

    N-Female

    MTBF

    ≥50000 hours

    Software system Specifications

    Local Monitoring System

    GUI base

    RJ45/RS232 cable

    Parameter setting

    Gain UL& DL

    Status monitoring (Alarm & signal level)

    Power supply, input/output power (UL/DL), temperature, VSWR

    Firmware download

    Yes

    Repeater restart function

    Yes

    Battery

    Yes

    Remote Monitoring System

    Remote Monitoring Server

    Configuration of Server

    GUI base

    Parameter setting: Gain UL& DL

    Status monitoring (Alarm & signal level): Power supply, input/output power (UL/DL),VSWR

    Repeater restart function

    3.MU+RU Whole System Technical Specification

    Items

    Testing Condition

    Technical Specification

    Memo

    uplink

    downlink

    Frequency Range

    TETRA

    Working in-band

    410-414MHz

    420-424MHz

    Customizable

    LTE

    Working in-band

    450-455MHz

    460-465MHz

    Customizable

    Max Bandwidth

    TETRA

    Working in-band

    4MHz

    Customizable

    LTE

    Working in-band

    5MHz

    Customizable

    Output Power

    TETRA

    Working in-band

    0±2dBm

    +40±2dBm

    Customizable

    LTE

    Working in-band

    0±2dBm

    +40±2dBm

    ALC（dB）

    Input add 10dB

    △Po≤±2

    Max Gain

    Working in-band

    45±3dB

    45±3dB

    Gain Adjustable Range(dB)

    Working in-band

    ≥30

    Gain Adjustable Linear（dB）

    10dB

    ±1.0

    20dB

    ±1.0

    30dB

    ±1.5

    Ripple in Band(dB)

    Effective Bandwidth

    ≤3

    Max.input level

    Continue 1min

    -10 dBm

    Transmission Delay(us)

    Working in-band

    ≤5

    Noise Figure（dB）

    Working in-band

    ≤6（Max.gain）

    Spurious emissions

    9kHz～1GHz

    ≤-36dBm/100kHz

    1GHz～12.75GHz

    ≤-30dBm/1MHz

    Intermodulation Attenuation

    9kHz～1GHz

    ≤-36dBm/100kHz

    1GHz～12.75GHz

    ≤-30dBm/1MHz

    Port VSWR

    Working in-band

    ≤1.5
