KingTone Customized UHF RF BDA Trunk/Line Amplifier 10W 45dB Gain for DMR DAS System

Short Description:

KingTone Customized UHF RF BDA Trunk/Line Amplifier 10W 45dB Gain for DMR DAS System Kingtone JIMTOM® line amplifier is designed to extend and compensate the distribution loss and transmission loss of DAS system line and branch cable , which is much cheaper than adding a new Base Station (BTS). Main operation of RF line amplifier is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. A...

Brand: Kingtone/JIMTOM

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Warranty: 12months

Trunk Amplifier: Line Amplifier

UHF RF BDA trunk amplifier: 10W DMR DAS system amplifier

Bi-Directional Amplifier: Bi-directional trunk amplifier 40dBm

Gain: 45dB

Send email to us Download as PDF

Product Detail

Product Tags

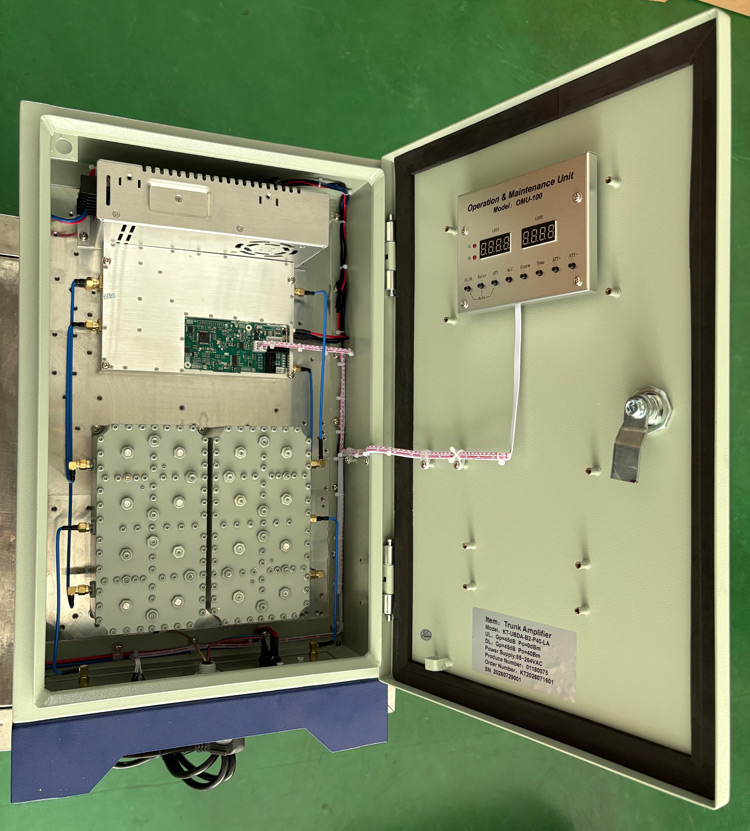

KingTone Customized UHF RF BDA Trunk/Line Amplifier 10W 45dB Gain for DMR DAS System Kingtone-Cellular-DAS-System

Kingtone JIMTOM® line amplifier is designed to extend and compensate the distribution loss and transmission loss of DAS system line and branch cable , which is much cheaper than adding a new Base Station (BTS). Main operation of RF line amplifier is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Main Features

◇ High linearity PA; High system gain；
◇ Intelligent ALC technology；
◇ Full duplex and high isolation from uplink to downlink；
◇ Automatic Operation convenient operation；
◇ Integrated technique with reliable performance;
◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;
◇ Weatherproof design for all-weather installation;

Technical Specifications

Items		Testing Condition	Specification		Meno
			Uplink	Downlink
Working Frequency(MHz)		Nominal Frequency	456-458MHz	466 -468MHz	Customizable
Bandwidth		Nominal Band	2MHz
Gain(dB)		Nominal Output Power-5dB	45±3
Output Power (dBm)		modulating signal	0±2	+40±2
ALC (dBm)		Input Signal add 20dB	△Po≤±1
Noise Figure (dB)		Working in-band（Max. Gain）	≤5
Ripple in-band (dB)		Nominal Output Power -5dB	≤3
Frequency Tolerance (ppm)		Nominal Output Power	≤0.05
Time Delay (us)		Working in-band	≤1
Gain Adjustment Step (dB)		Nominal Output Power -5dB	1dB
Gain Adjustment Range(dB)		Nominal Output Power -5dB	≥30
Gain Adjustable Linear(dB)	10dB	Nominal Output Power -5dB	±1.0
	20dB	Nominal Output Power -5dB	±1.0
	30dB	Nominal Output Power -5dB	±1.5
Inter-modulation Attenuation (dBc)		Working in-band	≤-45
Spurious Emission(dBm)	9kHz-1GHz	BW:30KHz	≤-36	≤-36
	1GHz-12.75GHz	BW:30KHz	≤-30	≤-30
VSWR		BS/MS Port	1.5
I/O Port		N-Female
Impedance		50ohm
Operating Temperature		-25°C ~+55°C
Relative Humidity		Max. 95%
MTBF		Min. 100000 hours
Power Supply		DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)			Customizable
Remote Monitoring Function		Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power			Optional
Remote Control Module		RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery			Optional
