A UHF power splitter divides a single radio frequency (RF) signal into multiple outputs, distributing the signal’s energy to several devices like wireless receivers or antennas. It is often used with active splitters that amplify the signal to compensate for power loss from splitting. In addition to splitting signals, it also serves to combine multiple signals into one, making it a versatile tool in RF systems.

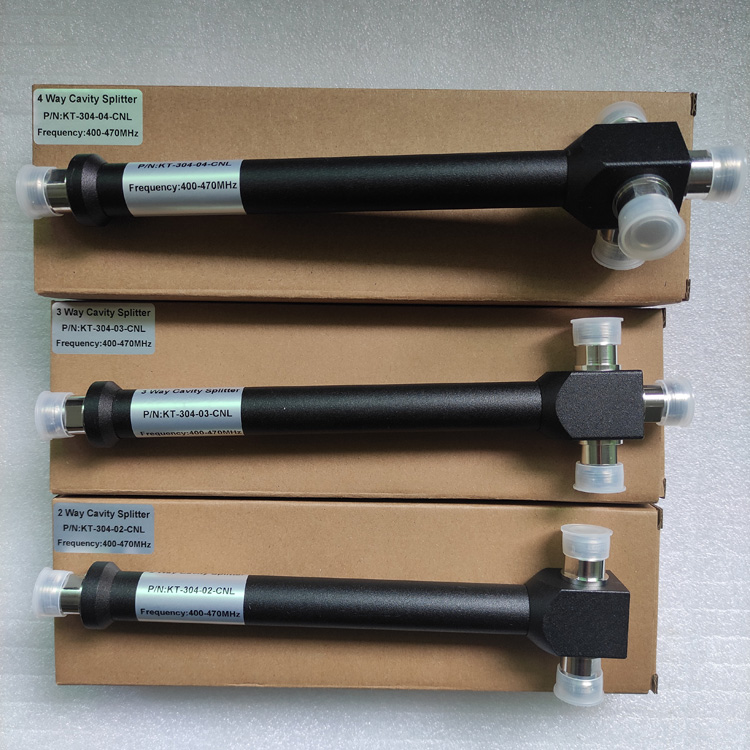

The RF Power Divider 400-470MHz UHF 2/3/4 Way Cavity Power Splitter with N-female Connector for IBS,BTS,DAS
The splitter is perfect for applications that require coverage of up to two/three/four different areas from a single repeater base unit.
2 Way Cavity Power Splitter Technical Data
| Split Loss |
3.0dB |
| Insertion Loss |
≦0.3dB |
| VSWR max |
1.25 |
| Impedance |
50Ω |
| RF Connector |
N-F |
| Average Power |
200W |
| Temperature |
-20~+70 |
| Weight |
0.18Kg |
| Dimension |
217.7*60.4*25 |
3 Way Cavity Power Splitter Technical Data
| Split Loss |
4.8dB |
| Insertion Loss |
≦0.5dB |
| VSWR max |
1.3 |
| Impedance |
50Ω |
| RF Connector |
N-F |
| Average Power |
200W |
| Temperature |
-20~+70 |
| Weight |
0.22Kg |
| Dimension |
235*60*25 |
4 Way Cavity Power Splitter Technical Data
| Split Loss |
6.0dB |
| Insertion Loss |
≦0.5dB |
| VSWR max |
1.3 |
| Impedance |
50Ω |
| RF Connector |
N-F |
| Average Power |
200W |
| Temperature |
-20~+70 |
| Weight |
0.22Kg |
| Dimension |
235*60*25 |
-
