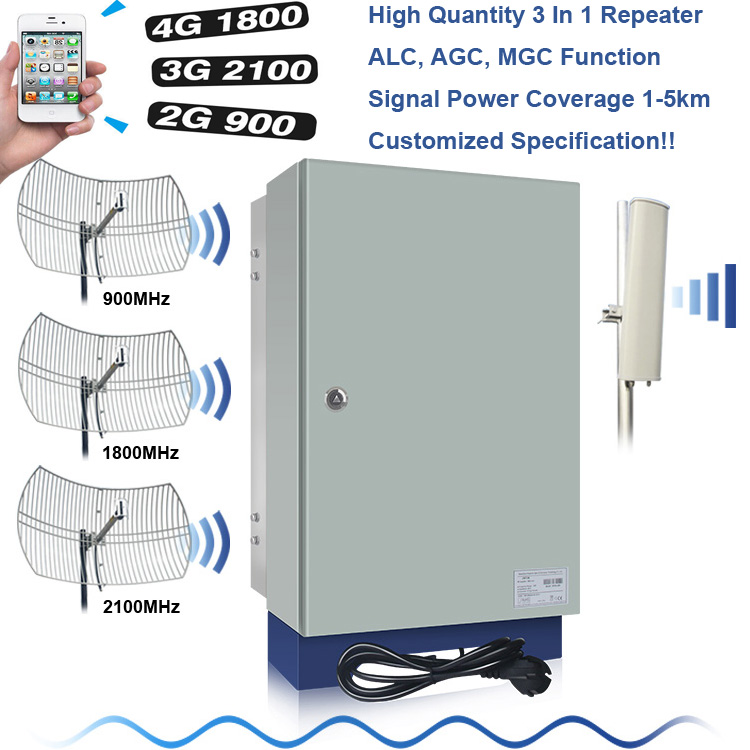

Kingtone JIMTOM® B8+B3+B1 20W Tri-band Off-air Band Selective Repeaters Standard Version
Model:KT-B8/3/1RP-B25/75/60-P43
Kingtone JIMTOM® Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Main Features
◇ High linearity PA; High system gain；
◇ Intelligent ALC technology；
◇ Full duplex and high isolation from uplink to downlink；
◇ Automatic Operation convenient operation；
◇ Integrated technique with reliable performance;
◇ Robust OMT/OMC function with automatic fault alarm &remote control,easy of operate and maintenance,option;
◇ Weatherproof design for all-weather installation;
◇ Compact size, Tri-band in one cabinet;
Technical Specifications:
|
Items |
Testing Condition |
Specification |
MEMO |
||||||
|
Uplink |
Downlink |
|
|||||||
|
Working Frequency(MHz) |
Band8 |
Nominal Band |
890-915MHz |
935-960MHz |
|
||||
|
Band3 |
1710-1785MHz |
1805-1880MHz |
|
||||||
|
Band1 |
1920-1980MHz |
2110-2170MHz |
|
||||||
|
Bandwidth |
Band8 |
Nominal Band |
25MHz |
|
|||||
|
Band3 |
Nominal Band |
75MHz |
|
||||||
|
Band1 |
Nominal Band |
60MHz |
|
||||||
|
Gain(dB) |
Nominal Output Power-5dB |
90±3 |
90±3 |
||||||
|
Technology Included |
Nominal Band |
2G(GSM),3G(WCDMA),4G(LTE) |
|
||||||
|
Output Power (dBm) |
Band28 |
modulating signal |
+33±1 |
+43±1 |
|
||||
|
Band20 |
modulating signal |
+33±1 |
+43±1 |
|
|||||
|
Band8 |
modulating signal |
+33±1 |
+43±1 |
|
|||||
|
ALC (dBm) |
Input Signal add 20dB |
△Po≤±1 |
|
||||||
|
Noise Figure (dB) |
Working in-band（Max. Gain） |
≤5 |
|
||||||
|
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
|
||||||
|
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
|
||||||
|
Time Delay (us) |
Working in-band |
≤5 |
|
||||||
|
Peak Phase Error(°) |
Working in-band |
≤20 |
For GSM | ||||||
|
RMS Phase Error (°) |
Working in-band |
≤5 |
For GSM | ||||||
|
ACLR |
LTE |
Working in-band |
Compatible with 3GPP TS 36.143 |
||||||
|
UMTS |
Working in-band |
Compatible with 3GPP TS 25.143 |
|||||||
|
Spectrum Mask |
LTE |
Working in-band |
Compatible with 3GPP TS 36.143 |
||||||
|
UMTS |
Working in-band |
Compatible with 3GPP TS 25.143 |
|||||||
|
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
|
||||||
|
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
|
||||||
|
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
|||||
|
20dB |
Nominal Output Power -5dB |
±1.0 |
|
||||||
|
30dB |
Nominal Output Power -5dB |
±1.5 |
|
||||||
|
IMD3 (dBc) |
Working in-band |
≤-45 |
For GSM |
||||||
|
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
|
||||
|
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
|||||
|
VSWR |
BS/MS Port |
1.5 |
|
||||||
|
I/O Port |
N-Female |
|
|||||||
|
Impedance |
50ohm |
|
|||||||
|
Operating Temperature |
-25°C ~+55°C |
|
|||||||
|
Relative Humidity |
Max. 95% |
|
|||||||
|
MTBF |
Min. 100000 hours |
|
|||||||
|
Power Supply |
DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%) |
|
|||||||
|
Remote Monitoring Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power | Option | |||||||
|
Remote Control Module |
RS232 or RJ45 + Wireless Modem |
Option |
|||||||
