Kingtone High Performance Best RF Receiver 380MHz 400MHz 4 Channels UHF RX Multi-Coupler

Kingtone High Performance Best RF Receiver 380MHz 400MHz 4 Channels UHF RX Multi-Coupler Featured Image
  • Kingtone High Performance Best RF Receiver 380MHz 400MHz 4 Channels UHF RX Multi-Coupler
  • Kingtone High Performance Best RF Receiver 380MHz 400MHz 4 Channels UHF RX Multi-Coupler
  • Kingtone High Performance Best RF Receiver 380MHz 400MHz 4 Channels UHF RX Multi-Coupler

Short Description:

Kingtone JIMTOM® UHF RX Multi-Coupler is widely used in general communication network relay station, all kinds of special and public mobile communication network. The application of receiver multi-coupler can connect multiple base receivers to one receiving antenna, which not only saves the engineering cost of antenna, feeder and tower erection, but also it can reduce the signal jam to the RX channel with the RX filter, it also internal integrated Lowe Noise Amplifier(LNA) which can improve t...


  • Brand: Kingtone/JIMTOM
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Warranty: 12months
    • Download as PDF

    Product Detail

    Product Tags

    Kingtone JIMTOM® UHF RX Multi-Coupler is widely used in general communication network relay station, all kinds of special and public mobile communication network. The application of receiver multi-coupler can connect multiple base receivers to one receiving antenna, which not only saves the engineering cost of antenna, feeder and tower erection, but also it can reduce the signal jam to the RX channel with the RX filter, it also internal integrated Lowe Noise Amplifier(LNA) which can improve the system sensitivity. Further more, it also integrated an adjustable attenuator
    with 1dB step, it can adjust the gain of RX channel.

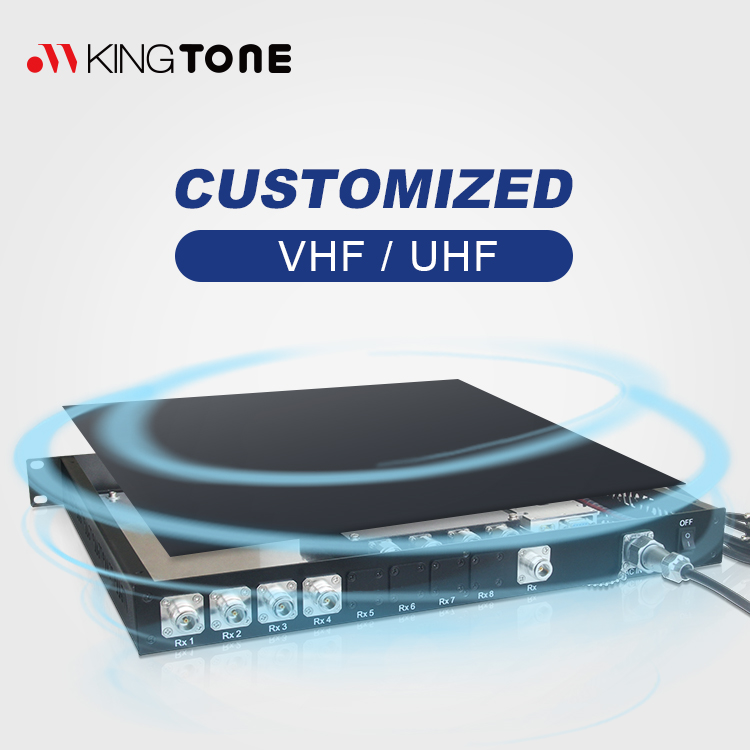

    RX Multi-Coupler.4
    Features
    ◇ Frequency Range：380-395MHz；
    ◇ Channel Number：4；
    ◇ Max Gain=8dB with adjustable range 30dB, 1dB step
    ◇ High Channel Isolation:≥20dB。
    ◇ Compact Size with standard 16 inch Chassis

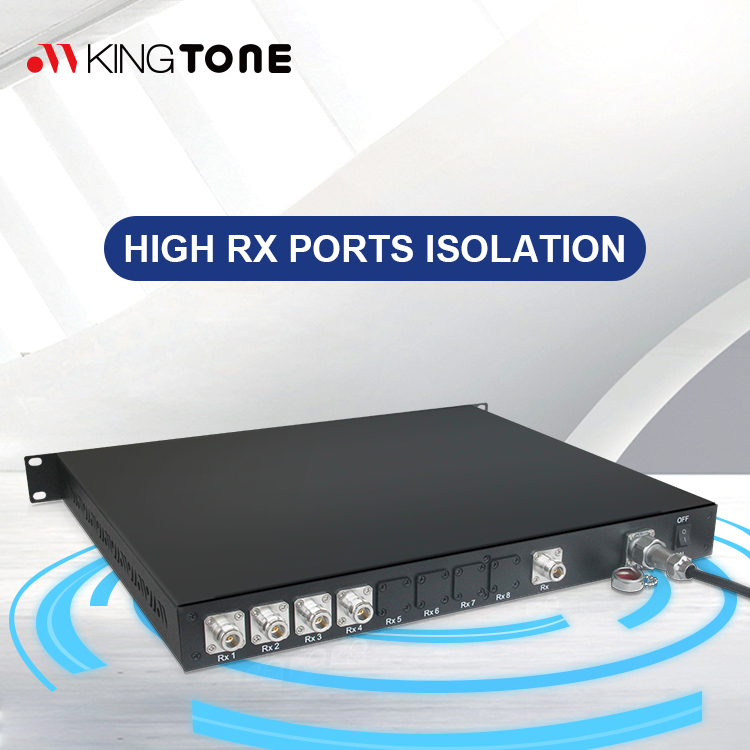

    RX Multi-Coupler.3

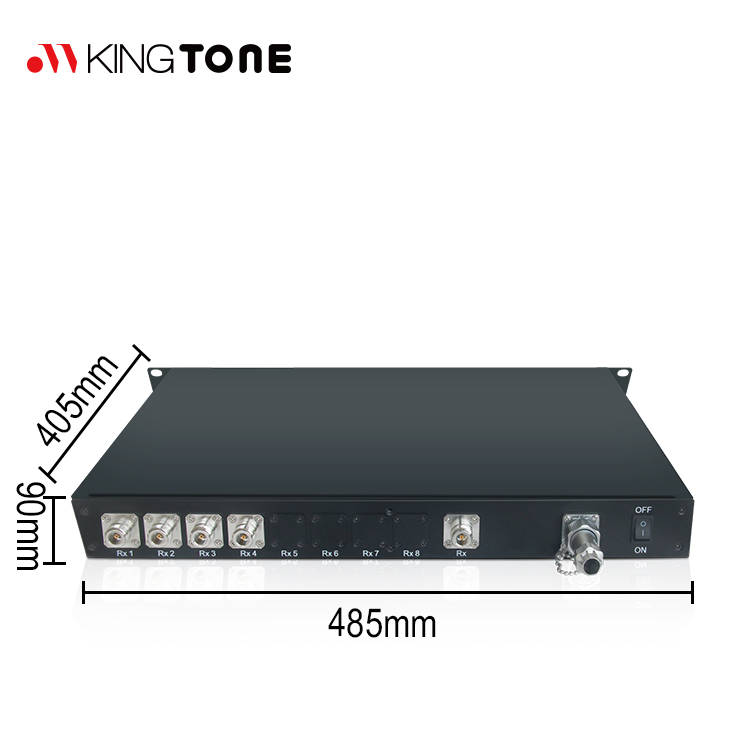

    RX Multi-Coupler.2
    Specifications
    Working frequency(MHz) 380-395
    Isolation Between Channels ≥60dB
    Channel Number 4
    Max Gain 8.0dB
    Gain adjust range 8 to -22dB with 1dB step
    In-band ripple(dB) ≤2
    Input Port VSWR ≤1.25
    Output Port VSWR ≤1.25
    Continuous input power >50W per channel
    Working temperature(℃) -30–+60℃
    Connector type N-K(F) ，SMA (Optional)
    Dimension(mm) 485mm*383mm*44.5mm

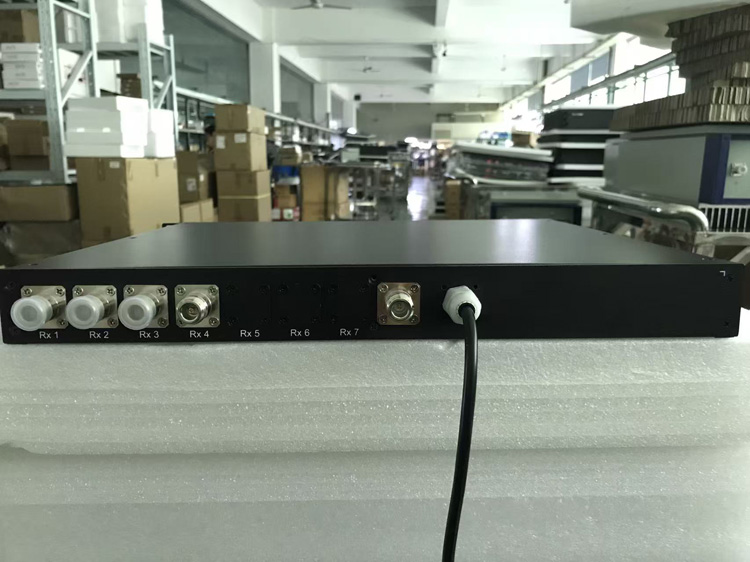

    Multicoupler.1
