Main Features
◇ High-Quality cavity;
◇ High pass though power,>200W;
◇ High RX and RX band rejection,>80dB;
◇ Low insertion loss;
◇ Coated with anti-corrosion vinyl;
◇ Wide operation temperature range -40~+85 Centigrade;
Applications
Repeater, Base station, Transceiver.
Technical Specifications
| Frequency range |
400-500MHz |
| Duplex Space |
10MHz |
| Bandwidth |
≤1MHz |
| Insertion loss |
≤1.4dB |
| In-band ripple |
≤1.0dB |
| VSWR |
≤1.3 |
| Isolation |
≥80dB |
| Maximum of input power |
200 |
| Connector type |
N-K(F) |
| Dimensions（D*W*H）mm |

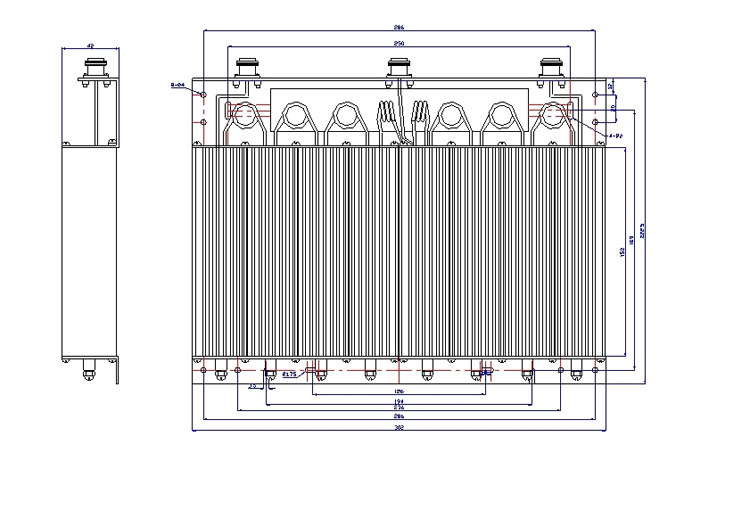

See the appearance drawing |
| Weight（Kg） |
1.5 |
| Working temperature （℃） |
-25–+55℃ |
This is customized product, you need to tell us which frequency you need when you make order, it needs about 2-3 weeks to produce fit item for you.
NOTE:
UHF Band Duplexer should be 10MHz
The difference between Transmitting Frequency and Receiving Frequency for UHF Band should be 10MHz Maximum due to the duplexer exists(For Example, TX:439.2MHz, then the RX frequency should be :429.2MHz maximum).

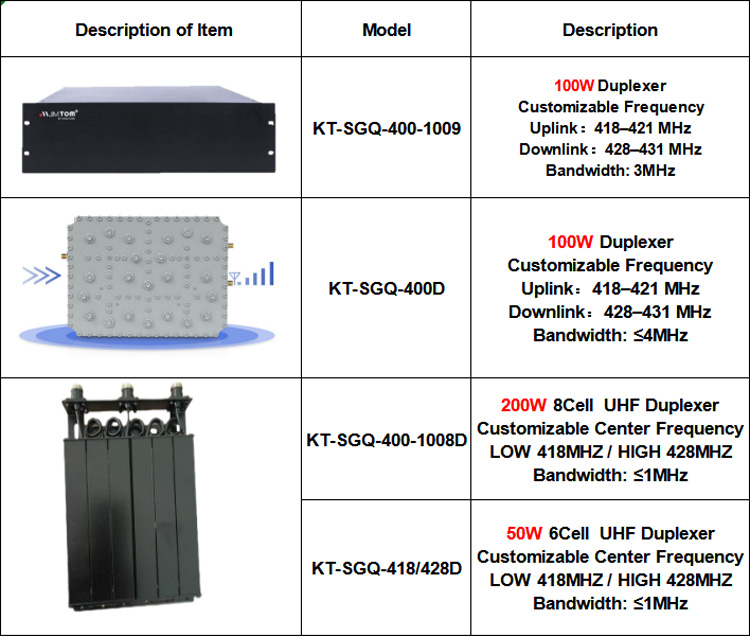

Kingtone UHF Duplexers:
