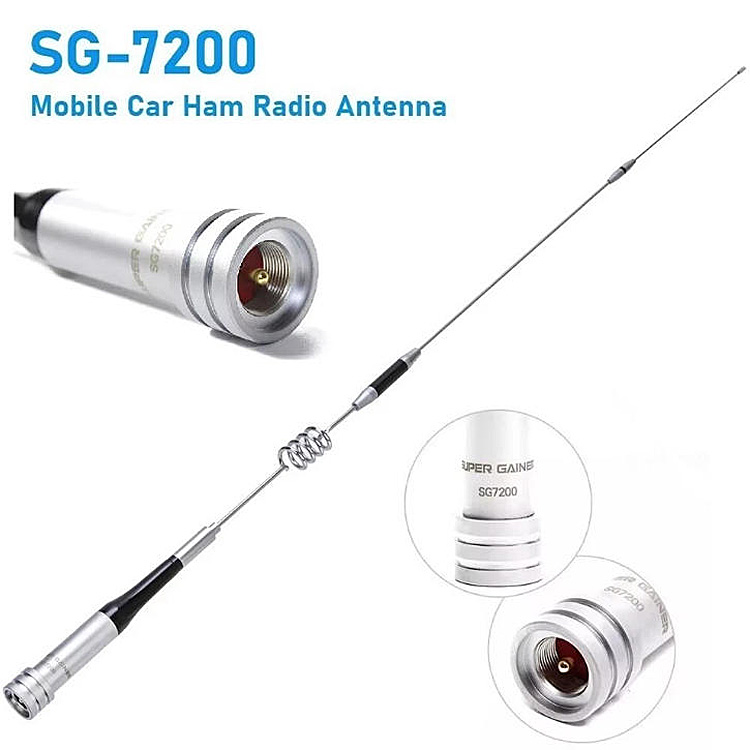

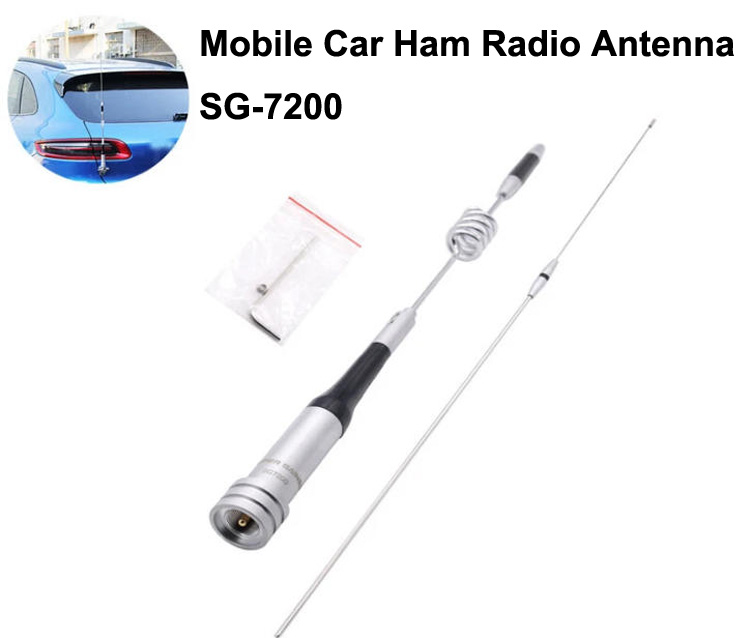

The SG-7200 is a high-gain, dual-band mobile antenna designed for VHF (144 MHz) and UHF (430 MHz) amateur radio operation. Delivering 3.0/6.0 dBi gain and capable of handling up to 50W–150W of power, it is a popular, cost-effective choice for improving vehicle and base station range.
Key Features
Dual-Band Utility: Eliminates the need for two separate antennas by covering both popular bands in a single whip.
Radialless Design: Does not require a traditional ground plane setup to function properly, making it very forgiving for a variety of vehicular installations (such as hatchbacks, trunk lids, or lip mounts).
Long-Range Performance: High-dBi gain effectively cuts through signal dropouts caused by terrain or distance, vastly improving transmit/receive clarity to and from repeaters.
- Frequency Range: 144/430 MHz (VHF/UHF)
- Gain: 3.5 dBi (144 MHz) / 6.0 dBi (430 MHz)
- Max Power Rating: Up to 50W to 150W (varies by manufacturer/version)
- Length: ~51 cm (typically 96–99 cm total depending on the exact model variant)
- Impedance: 50 Ω
- VSWR: <1.5:1
- Connector Type: UHF Male (PL-259 / SO-239)
| Model No. | SG-7200 |
| Material |
stainless steel |
|
Gain |
3.2dB(144MHz)/ 5.7dB(430MHz) |
| Poweer | 150W |
| V.S.W.R | <1.5 |
| Length | 98cm |
| Weight | 330g |
| Connector |
Male |
The SG-7200 is widely used in ham, amateur, and two-way radio setups. It is directly compatible with popular mobile transceivers from brands like Yaesu, ICOM, Kenwood, and QYT.
