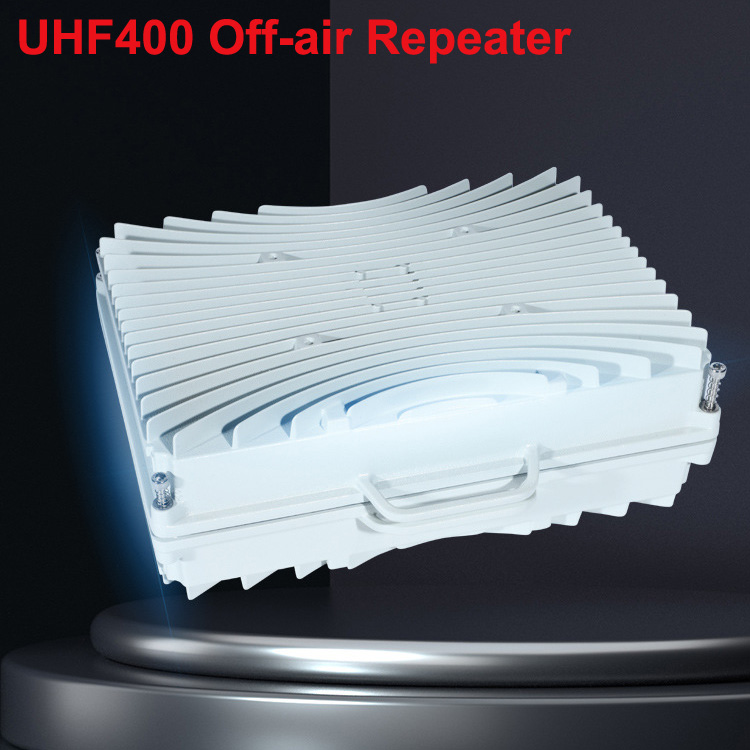

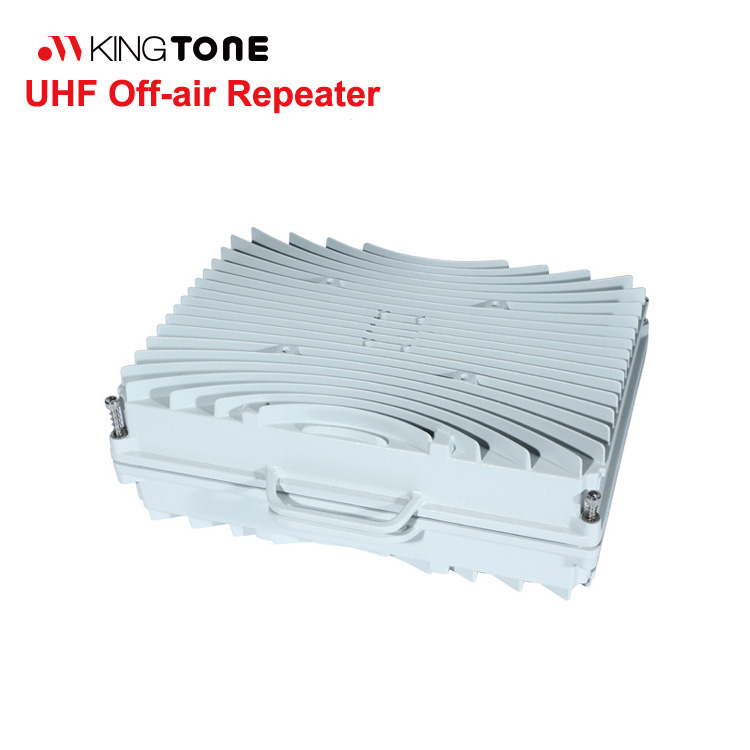

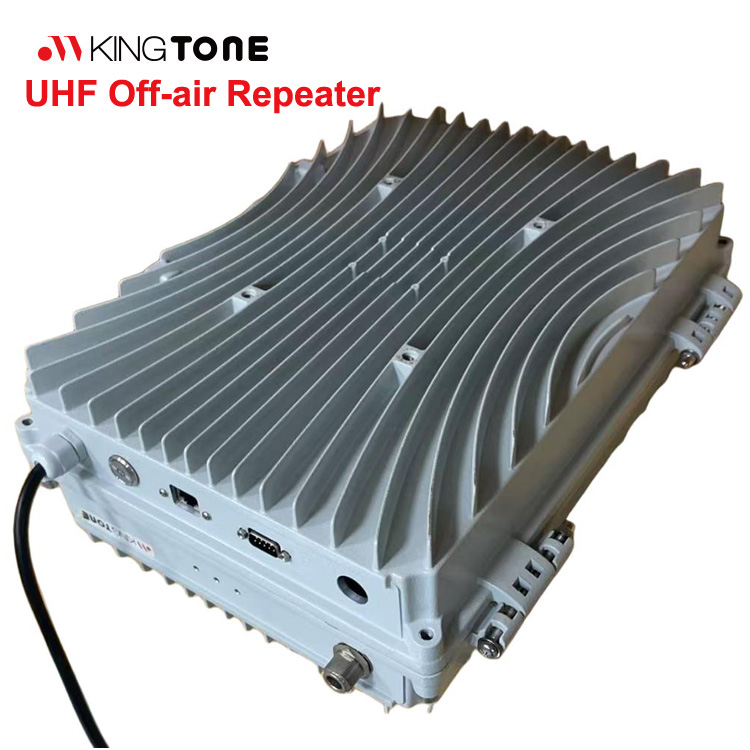

JIMTOM® UHF400 Off-air Repeater provides the most cost-effective solution to improve user experience of high quality UHF400 access in indoor environment. Equipping innovative plug-and-play enabling technologies, general users are able to easily install by themselves without any professional skill.
Features:
- Plug-and-Play
- 70dB Gain with JIMTOM® Cognitive Auto Power Level Control
- Low power consumption <50W.
- Gain Adjust range>30dB/1dB step.
|
Items |
Uplink |
Downlink |
|
|
Frequency Range |
415~420 MHz |
425 ~430 MHz |
|
|
Bandwidth |
5MHz |
5MHz |
|
|
Output Power |
20±2dBm |
30±2dBm |
|
|
Gain |
75±3dB |
80±3dB |
|
|
Ripple |
≤5dB |
≤5dB |
|
|
VSWR |
≤2 |
≤2 |
|
|
Max. Input Power Without Damage |
-10dBm |
-10dBm |
|
|
ATT step of 1dB |
1 ~ 10dB |
∣△∣≤1dB |
∣△∣≤1dB |
|
10 ~ 20dB |
∣△∣≤1dB |
∣△∣≤1dB |
|
|
20 ~ 25dB |
∣△∣≤1.5dB |
∣△∣≤1.5dB |
|
|
ALC Active 20dB |
∣△∣≤2dB |
∣△∣≤2dB |
|
|
Inter-modulation Products |
≤ -36dBc |
≤ -36dBc |
|
|
Spurious Emission |
9KHz~1GHz |
≤ -30dBm |
≤ -30dBm |
|
1GHz~12.75GHz |
≤ -30dBm |
≤ -30dBm |
|
|
Noise Figure @ max. gain |
≤ 8dB |
≤ 8dB |
|
|
Time Delay |
≤ 1μs |
≤ 1μs |
|
|
Alarm |
ALC not Active |
— |
Green |
|
ALC Active 5-10dB |
— |
Orange |
|
|
ALC Active 15-20dB |
— |
Red |
|
|
Power LED |
Power ON |
Green |
|
|
Power OFF |
No Light |
||
|
Power Supply |
AC220V |
||
|
Power Consumption |
≤50W |
||
|
Dimensions |
320mmx220mmx70mm |
||
|
Weight |
<12 kg |
||
|
RF Connector |
N-Female |
||
|
Environment Conditions |
IP65 |
||
|
Humidity |
< 90% |
||
|
Operating Temperature |
-10℃~+50℃ |
||
Applications:

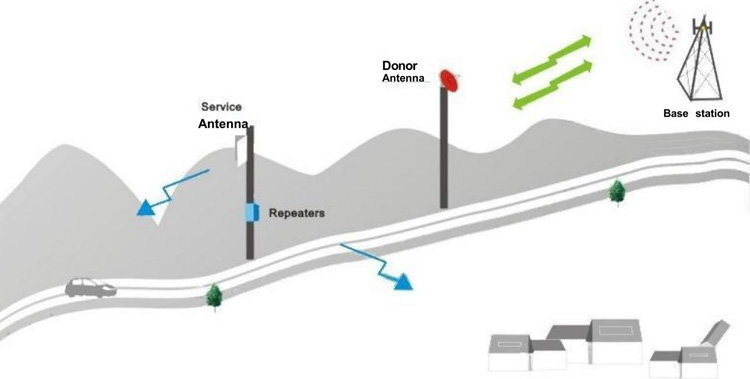

No professional configuration required but just Plug and Play, JIMTOM® UHF400 Off-air Repeater is a quick solution to extend UHF400 signal coverage to small and medium size indoor environment such as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so with JIMTOM® Cognitive Auto Power Level Control makes JIMTOM® UHF400 Off-air Repeater able to adapt to the cell environment and further provides the optimized signal coverage all the time.
