The micro-strip power divider used in the UHF 400–470 MHz frequency band is a common passive RF device widely employed in scenarios such as walkie-talkie systems, wireless communication, and indoor distribution systems.
Key Features of our UHF band products for your technical reference:
• Frequency Range: 400-470 MHz, optimized for UHF band applications
• Structural Design: Microstrip structure, offering compact size and cost efficiency, suitable for low to medium power applications

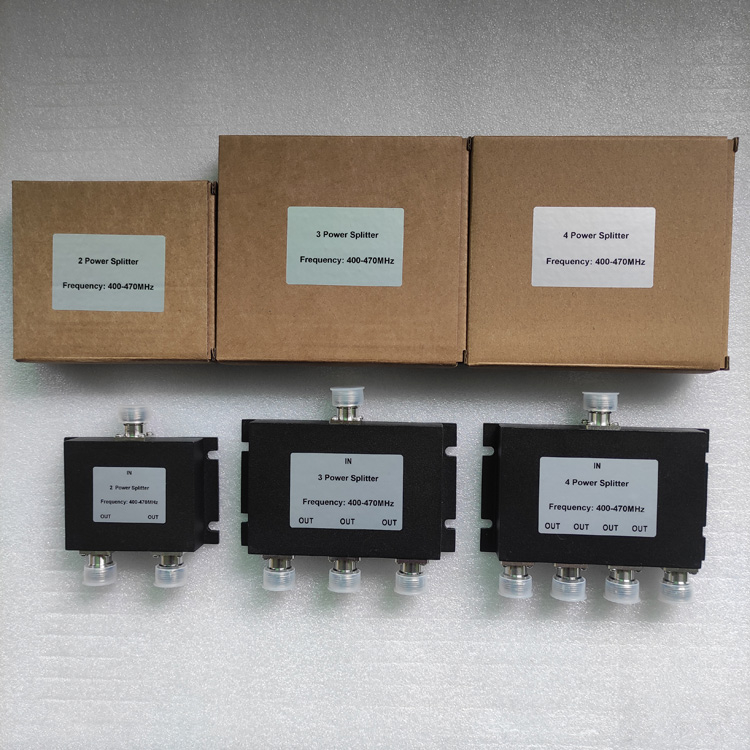

• Available Configurations: 2-Way, 3-Way, or 4-Way output options (1-2, 1-3, 1-4) to meet diverse system integration requirements
These specifications are engineered to deliver stable performance while maintaining flexibility for various deployment scenarios. Should you require further technical documentation, customization support, or commercial terms, please feel free to let’s know.

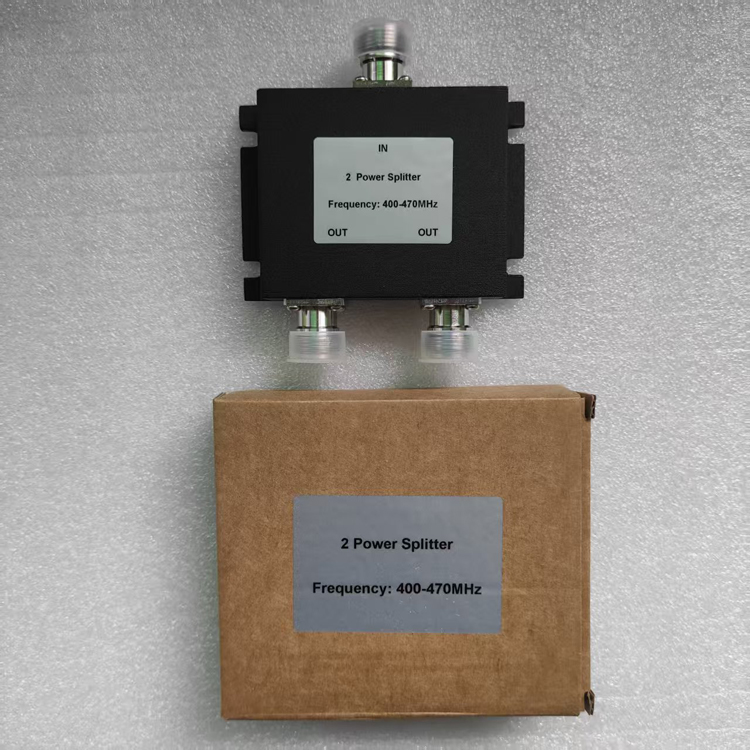

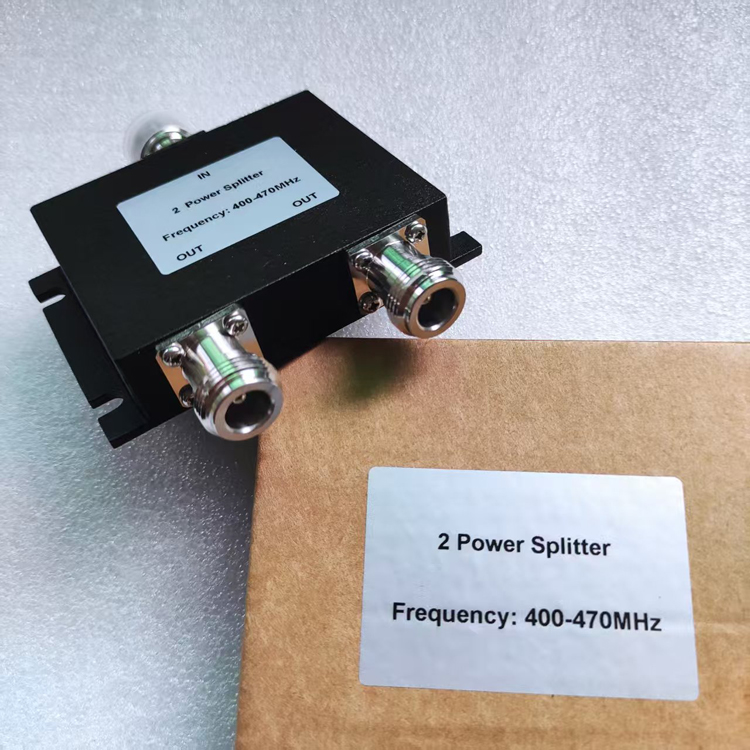

2 Way Micro-strip Power Splitter:

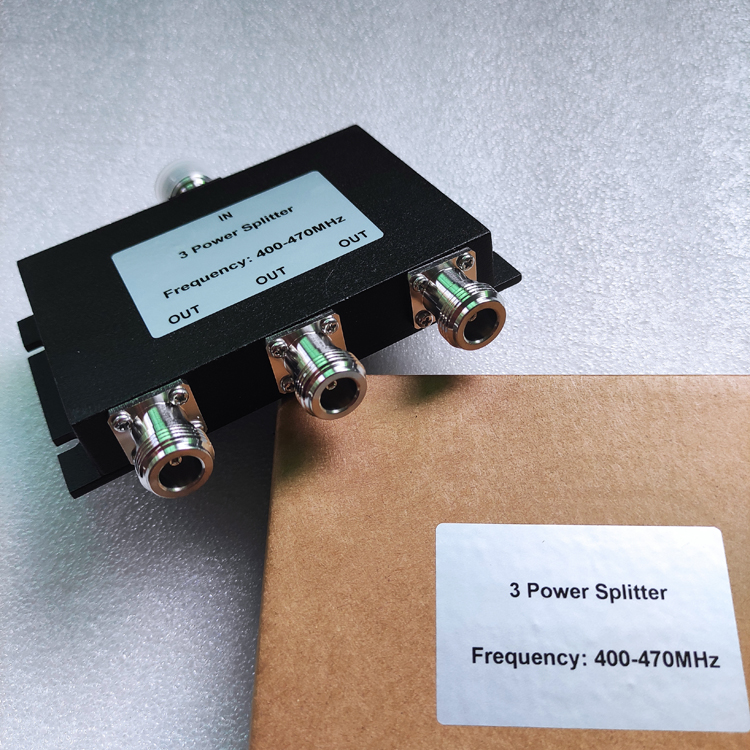

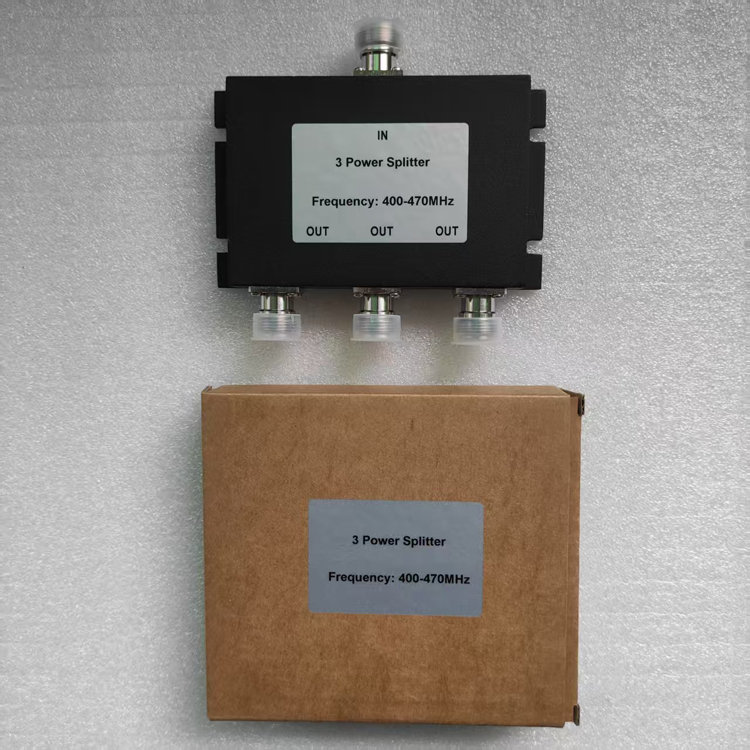

3 Way Micro-strip Power Splitter:

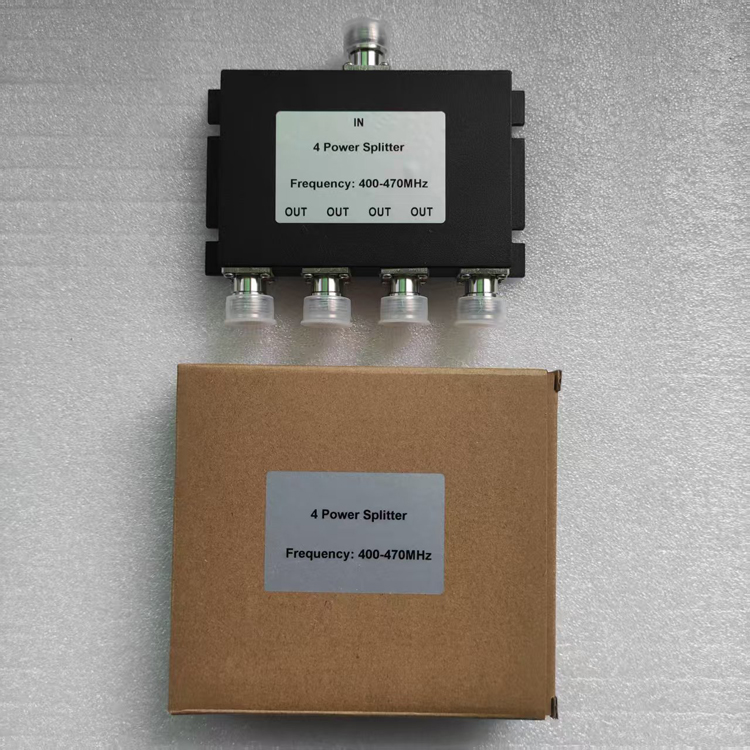

4 Way Micro-strip Power Splitter:
Solution by Application Scenario:
• If you need a low-cost and compact solution for general applications, a microstrip power divider is recommended. It offers good performance in a small footprint, ideal for space-constrained installations.
• For high-power, high-isolation, and high-stability requirements (e.g., base station or critical communication systems), a cavity power divider is the preferred choice. Its robust construction ensures reliable performance under demanding conditions.
Key Parameters to Confirm Before Order:
• Connector type: N-type is the most common and versatile, but please verify compatibility with your existing cabling.
• Power capacity: Ensure the divider can handle your system’s maximum transmit power with adequate margin.
• Operating temperature range: Standard range is -40°C to +70°C; please confirm if your environment requires extended specs.
