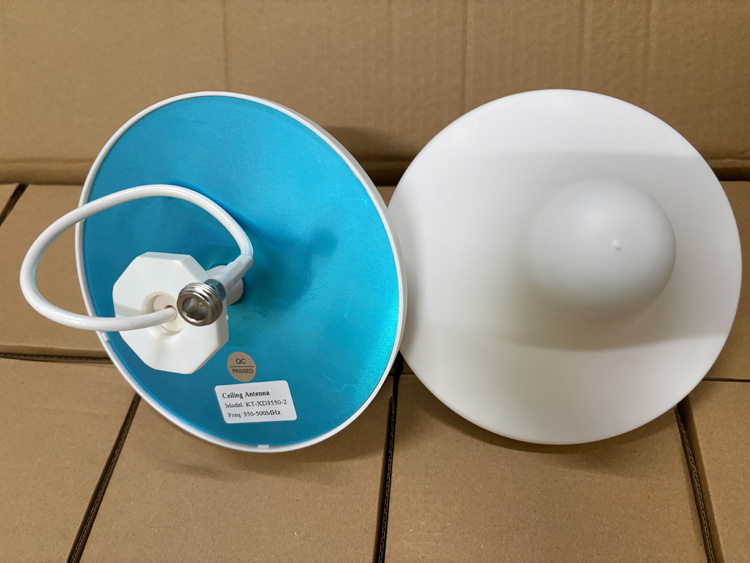

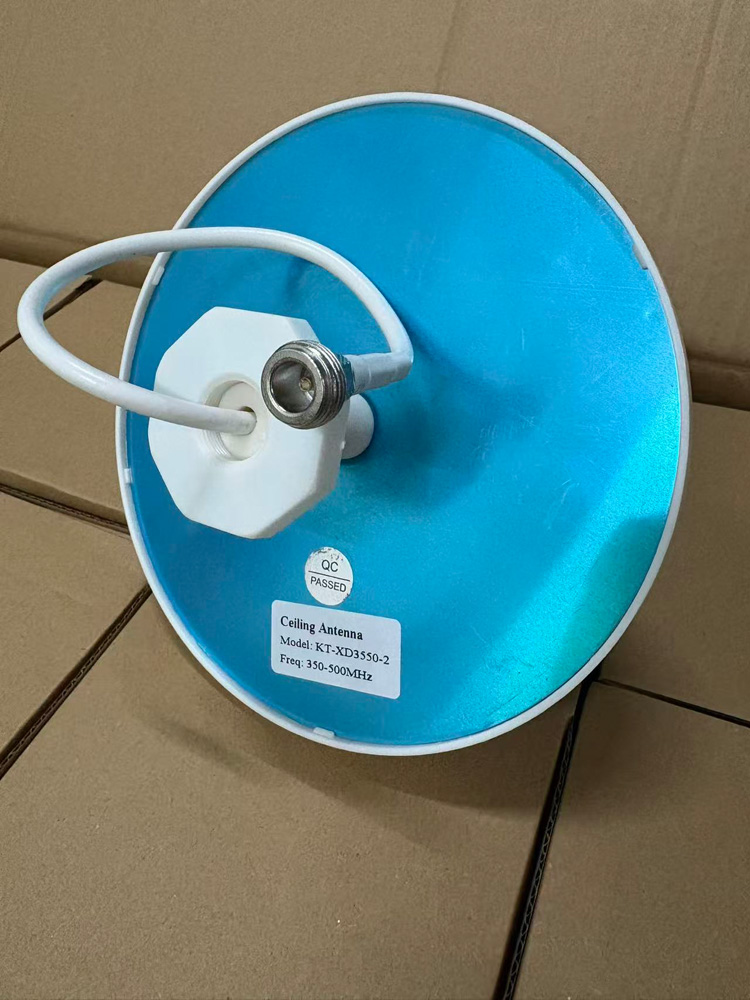

Kingtone JIMTOM® Celling Antenna 350-500MHz, N-F,Model:KT-XD3550-2 ,this indoor omni-directional antenna operates within the 350-500MHz UHF band, delivering high gain and low VSWR for superior signal performance. It supports up to 50W of power and features an N-Female connector, making it an excellent choice for dependable UHF radio communication across various indoor applications.
Key Features:
- Compact and lightweight design
- Wideband coverage
- High reliability
- Extended warranty period
- Easy installation
Datasheet:
|
Specification |
|
| Model |
KT-XD3550-2 |
|
Electrical specifications |
|
| Frequency range (MHz) |
350-500 |
| Polarization |
Vertical |
| Gain(dBi) |
2 |
| Beam width(º) |
H: 360 V: 65 |
| Impedance (Ω) |
50 |
| VSWR |
≤2.5 |
| Maximum input power (W) |
50 |
| Lightning protection |
DC Ground |
|
Mechanical specifications |
|
| Connector |
N-Female or user specified |
| Dimension (mm) |
Φ225×128 |
| Cable |
RG58/U, 30CM |
| Reflector material |
Aluminum alloy |
| Radome material |
ABS |
| Radome color |
White |
| Antenna weight (kg) |
0.8 |
| Operating temperature (℃) |
-40～50 |
