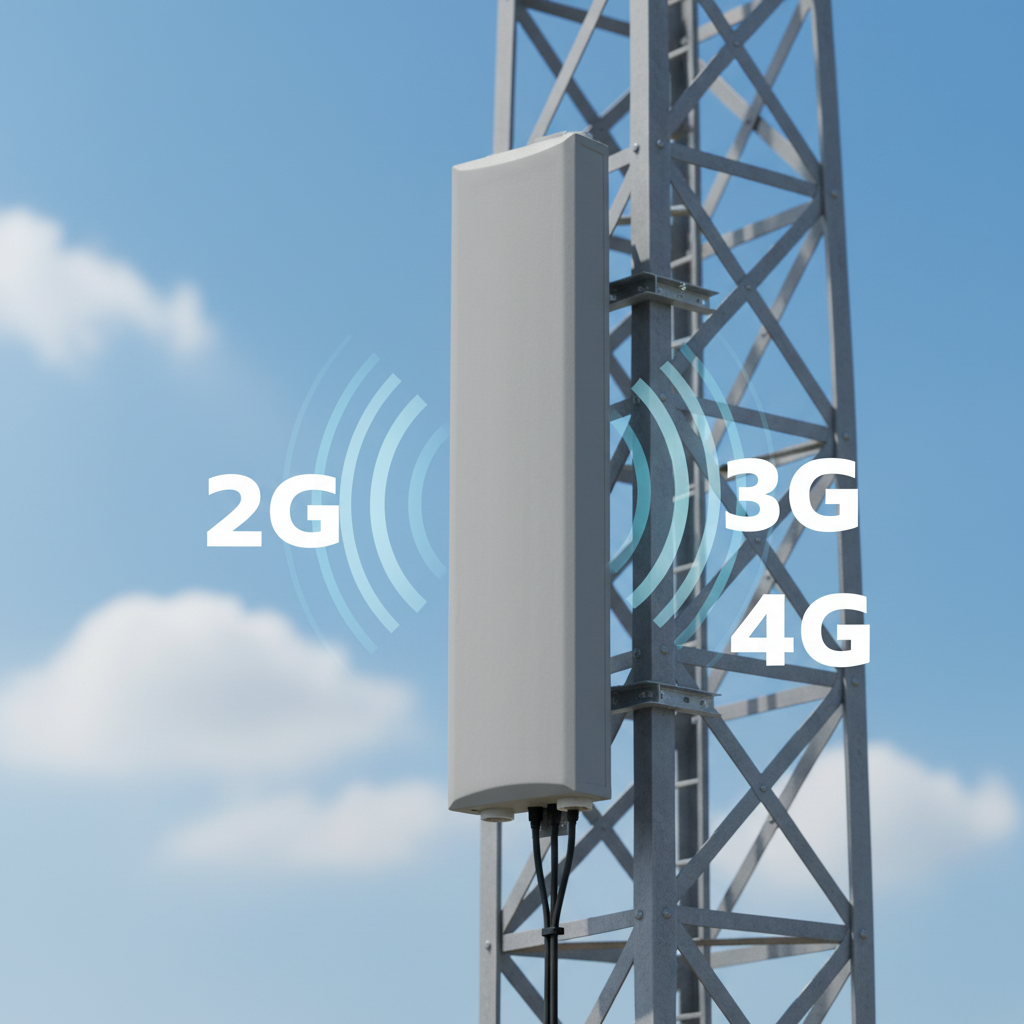

This antenna’s construction features a durable UV resistant PVC radome for durability and aesthetics. Its mounting system features heavy-duty up/down tilt mounting brackets. This allows installation at various degrees of incline for easy alignment.
The High Gain Outdoor Cellular Sector Antenna 15 DBi 1800-2600mhz Mimo 4g Lte External Directional Panel Antenna features a single N-Female connector due to the antenna’s internal combiner. This simplifies installation since only one coax cable is required to be sent to the antenna.
Features
- Heavy duty steel mounting brackets
- Integral N-Female connector
- Internal combiner eliminates the need for separate coax cables for each frequency
- All weather operation
- Frequency coverage for 1800 MHz, 1900 MHz, 2600 MHz bands
| Electrical Specifications | |
| FrequencyRange | 806-960MHz/1710-2700MHz |
| Gain(dBi) | 15/17±1dBi |
| VSWR | ≤1.5 |
| Polarization | ±45º |
| Horizontal Beamwidth(0º) | 65±10º |
| Vertical Beamwidth(0º) | 15±3º/7±3º |
| Front-to-back ratio(dB)Isolation(dB) | ≥25dB≥25dB |
| 3rd Order IMD(dBm) | (2@37dBm)≤ -107dBm |
| Electrical lower inclination(0º) | 0º |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 200W |
| Connector type | 2*N-K |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | 1500*280*125mm |
| Packing size(mm) | 1575*345*220mm |
| Antenna weight(kg) | 8.3Kg |
| Rated Wind Velocity(m/s) | 60m/s |
| Operational Humidity(%) | 10- 95 |
| Radome Color | Grey |
| Radome material | UPVC |
| Operating temperature(ºC) | -30~70 º |
| Installution Method | Pole |
| Mounting hardware(mm) | Φ30~Φ75 |
| Mechanical tilt(º) | 0-10º |
