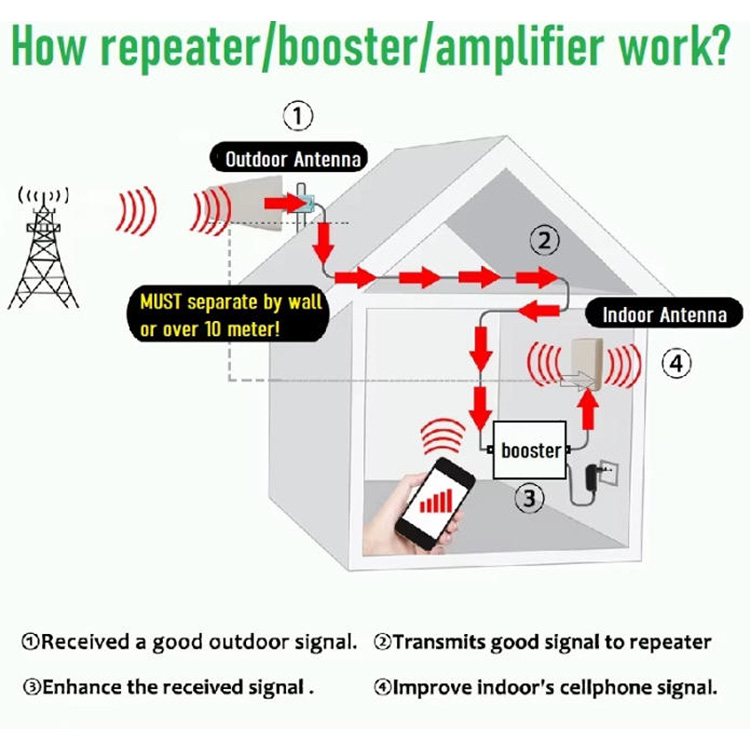

Tri band 2G 3G 4G Mobile signal booster (also named repeater, amplifier) is a product designed to solve the no signal or blind signal problem of the mobile.
As the mobile phone signal is transmitted by electromagnetic waves to establish a communication link, however there are a lot barriers make it is unavailable to get sound signal like if the buildings are too far from the Base Transceiver Station (BTS) or the buildings themselves shield or absorb signals. When people enter some places basement malls, restaurants and parking lot, some public places such as subway, tunnel, Hospital, Bank,Village, Shop, Hill Station, office, Hotel and etc.
The branded tri band cell phone signal can increase the signal strength of your mobile from 2bar to 5 bars when you install it in proper way and it also increases mobile battery life.
It can reduces the call drop and improve voice calling quality.
This mobile signal booster simultaneously works on all 2G, 3G & 4G network operators like Airtel, Vodafone, Idea, Aircel, BSNL, Tata Docomo, Reliance
Jio, Telenor Uninor etc.
Supports voice call that is 2G, 3G and 4G data for 4G/LTE/VOLTE mobile phones, including IOS , android, windows phone systems, etc. It gives better cell phone voice quality, faster uploads and downloads data.
It is plug and play device and work at 900MHz- 1800MHz-2100MHz frequency, it is light weighted, elegant appearance, low power consumption, durable.
It can cover the 4000 sq-ft area or if you want to increase the coverage area so you will install extra accessories such as splitter, antenna and
cables so it will extend the coverage upto 50000sq-ft.
No dropped calls any more, Better Voice Quality, Faster Uploads and Downloads.
This booster amplify very low signals and work in all places ranging from hills and mountains to densely populated residential areas, offices, flats,hotels, factories, restaurants etc.
This booster kit can strengthen the weak signal for home or office in rural areas, reduces disconnected calls and improves the voice quality as well as increases the battery life.
Our boosters are the perfect solutions for a wireless improvement in the mobile reception!!!

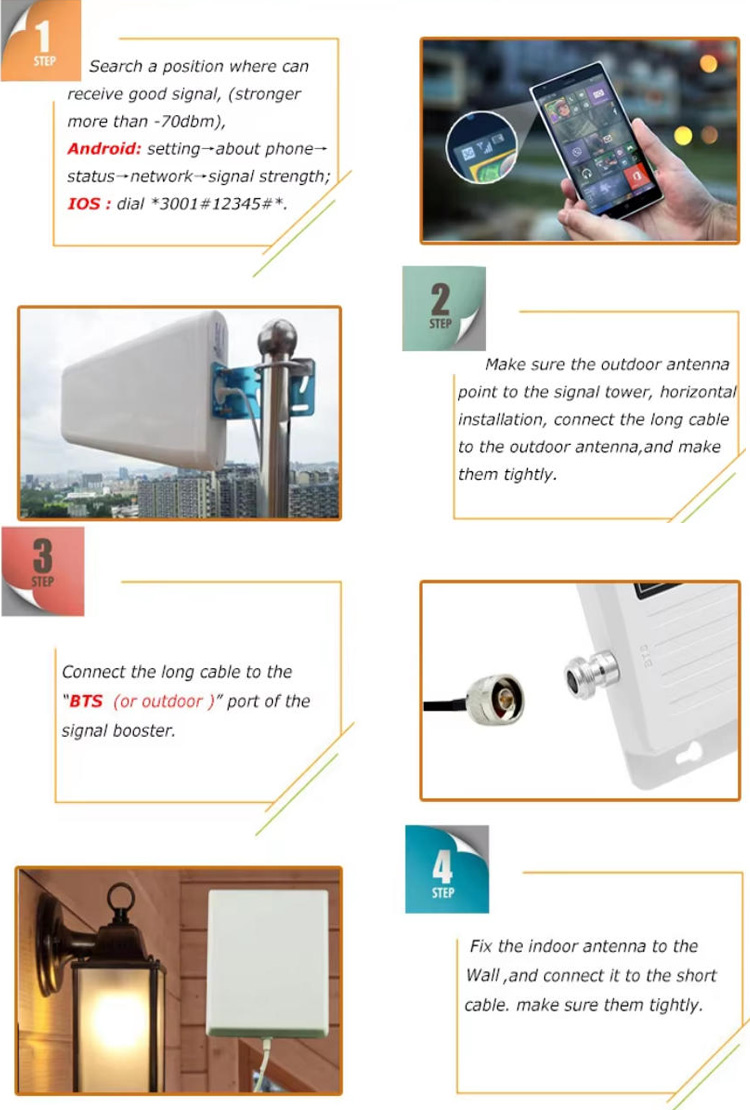

Easy installation and operation by yourself no need to technical person, this device is just plug and play.
|
Frequency Range
|
Up Link
|
Down Link
|
|
890MHz–915MHz
1710MHz–1785MHz
1920MHz–1990MHz
|
935MHz–960MHz
1805MHz–1880MHz
2110MHz–2180MHz |
|
|
Power
|
-70 ~ -40dBm/FA (1.23MHz)
|
|
|
Gain
|
Up Link: 60±3 Db;Down Link : 65±3 Db
|
|
|
Max Output Power
|
+23dBm
|
|
|
Impedance
|
50Ω
|
|
|
Power Supply
|
AC 110/220V (used AC/DC Adapter 12V dc)
|
|
|
Seclusion
|
>70dB
|
|
|
Compact Design
|
Indoor Use
|
|
|
Item Diemension
|
23*18.2*2.1cm
|
|
|
Connect Mode
|
N connector
|
|
|
Ambient temperature
|
-10°C~60°C
|
|
Purchase a suitable set of booster from us and install it, and immediately you would be able to enjoy the full bar and high quality signal.
2G 3G 4G 900 / 1800 / 2100MHz signal repeater packing list

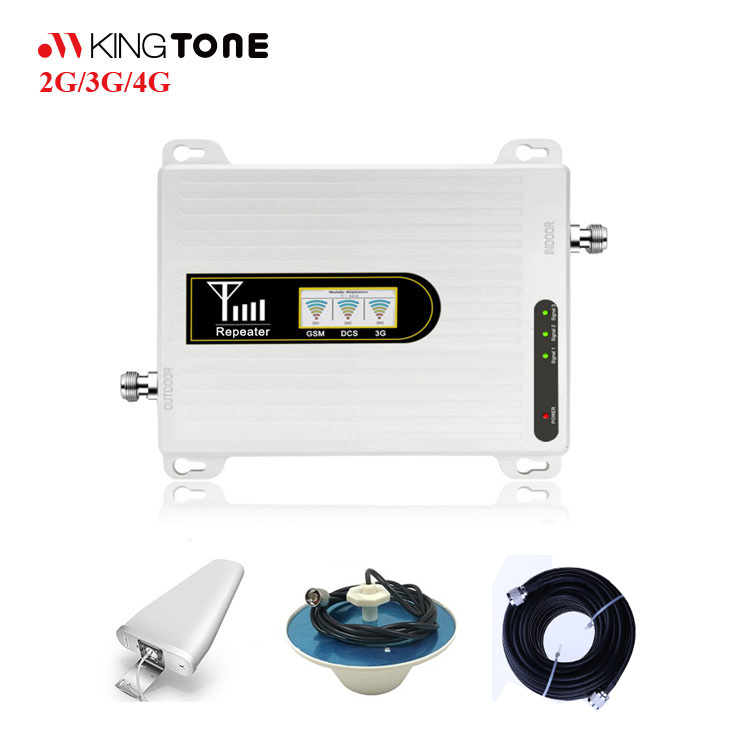

Version1:
1,Signal booster Unit 1pc
2,Power adaptor 1pc
3,User manual 1pc
4,Outdoor LAPA antenna 1pc
5,Indoor omni antenna with 30cm Cable 1pc
6,10m cable 1pc

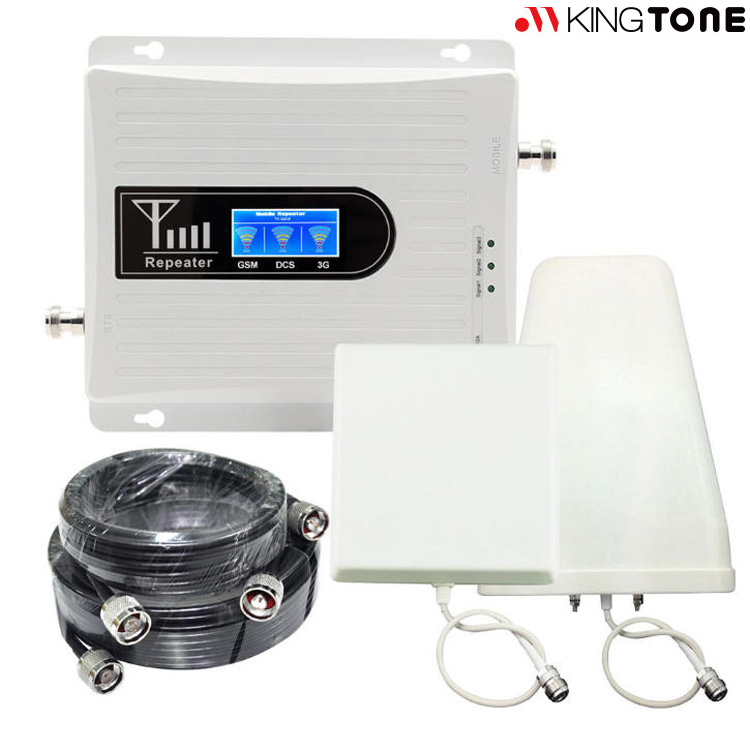

Version2:
1,Signal booster Unit 1pc
2,Power adaptor 1pc
3,User manual 1pc
4,Outdoor LAPA antenna 1pc + 10m cable 1pc
5,Indoor Panel antenna 1pc + 5m cable 1
-
