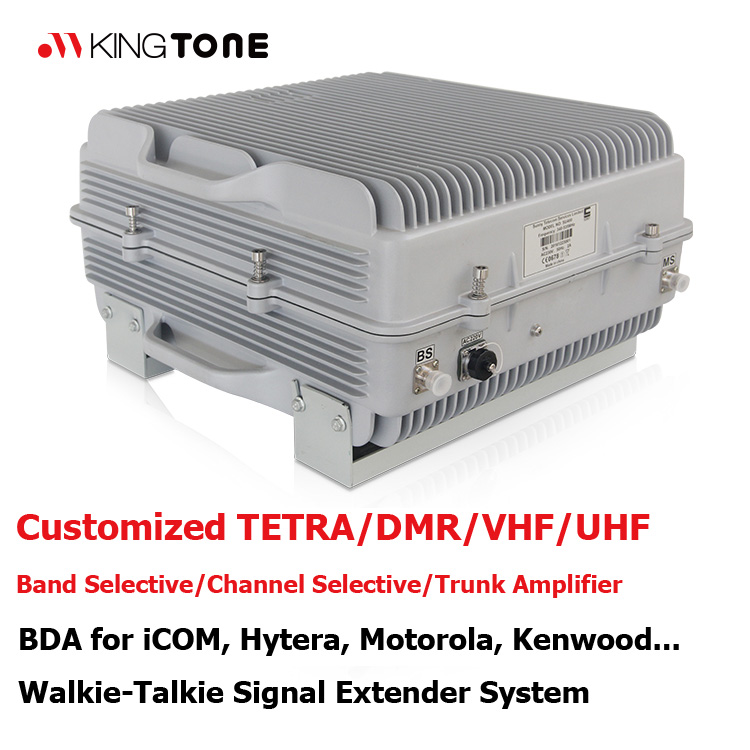

Stable BDA Indoor DAS Walkie-Talkie System Customized UHF 380-470MHz 95dB High-Gain 10W Cavity Duplexer with 5MHz Amplifier

Short Description:

Brand: Kingtone/JIMTOM

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Warranty: 12months

Send email to us Download as PDF

Product Detail

Product Tags

Stable BDA Indoor DAS Walkie-Talkie System Customized UHF 380-470MHz 95dB High-Gain 10W Cavity Duplexer with 5MHz Amplifier offers cost-effective and reliable solutions to extend and enhance the coverage area of Tetra BTS, particularly in complex radio environments with strong interference. This wireless band-selective BDA amplifies and filters desired carriers in both uplink and downlink directions. Equipped with an FPGA-based high-performance band-selective digital filter, high linearity and efficient power amplifiers, and a robust operating and maintenance system, the BDA provides a powerful and economical solution for improving BTS coverage. Typical application scenarios include tunnels, buildings, subways, and outdoor environments such as stadiums, rural areas, and dense urban regions.

It is well-known that communication systems in buildings often fall short of expectations, particularly in multi-story structures where signal coverage can be inconsistent. In emergency situations, this lack of reliable communication can be critical for both first responders and building occupants.

Radio enhancement systems typically consist of three key components: DAS (Distributed Antenna Systems), BDA (Bi-Directional Amplifiers), and donor antennas. Donor antennas capture incoming signals from outside the building, while BDAs amplify and strengthen the connection. DAS then ensures the signal is evenly distributed across the entire area.

Recognizing that every building and work site is unique, we leverage our extensive experience in wireless technology to design tailored enhancement systems that meet your specific needs.

Items		Testing Condition	Specification		Meno
			Uplink	Downlink
Working Frequency(MHz)		Nominal Frequency	457-459mhz	467-469mhz	Customized
Bandwidth		Nominal Band	2MHz
Gain(dB)		Nominal Output Power-5dB	95±3
Output Power (dBm)		modulating signal	33	40
ALC (dBm)		Input Signal add 20dB	△Po≤±1
Noise Figure (dB)		Working in-band（Max. Gain）	≤5
Ripple in-band (dB)		Nominal Output Power -5dB	≤3
Frequency Tolerance (ppm)		Nominal Output Power	≤0.05
Time Delay (us)		Working in-band	≤5
Gain Adjustment Step (dB)		Nominal Output Power -5dB	1dB
Gain Adjustment Range(dB)		Nominal Output Power -5dB	≥30
Gain Adjustable Linear(dB)	10dB	Nominal Output Power -5dB	±1.0
	20dB	Nominal Output Power -5dB	±1.0
	30dB	Nominal Output Power -5dB	±1.5
Inter-modulation Attenuation (dBc)		Working in-band	≤-45
Spurious Emission(dBm)	9kHz-1GHz	BW:30KHz	≤-36	≤-36
	1GHz-12.75GHz	BW:30KHz	≤-30	≤-30
VSWR		BS/MS Port	1.5
I/O Port		N-Female
Impedance		50ohm
Operating Temperature		-25°C ~+55°C
Relative Humidity		Max. 95%
MTBF		Min. 100000 hours
Power Supply		AC220V(50Hz)/AC110V(60Hz)( ±15%)

Kingtone provides a comprehensive range of repeaters (bidirectional amplifiers or BDAs) designed to meet diverse requirements:

Wireless wideband repeaters (suitable for outdoor and indoor coverage)
Analog/Digital Fiber Optic repeaters (long-range coverage with RU&MU reaching up to 20km, ideal for tunnels and mines)
Analog/Digital Channel Selective repeaters (channel-specific, primarily for operators)
Trunk Amplifiers (DAS)
ICS repeaters (no antenna distance requirements)
Signal jammers
Mobile Signal Boosters
Walkie-Talkies

Our systems support GSM, EGSM, DCS, CDMA, PCS, WCDMA, FDD-LTE, TDD-LTE, FM, VHF/UHF, TETRA, IDEN, DMR, and more.
