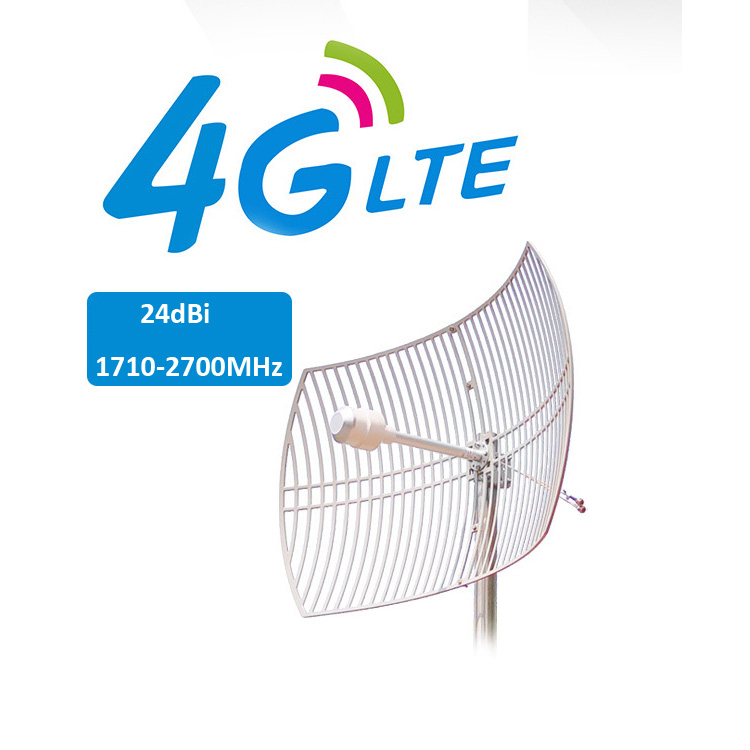

Kingtone 1710-2700MHz Cellular High Gain Antenna 24dB High-range Outdoor Parabolic Grid f Female Connector for GSM DCS WCDMA LTE
TECHNICAL SPECIFICATION
| Electrical Specifications | |
| Frequency rang-MHz | 1710-2700 |
| Bandwidth -MHz | 960 |
| Gain -dBi | 24 |
| beam width -° | H：14 V：10 |
| Front to Back Ratio-dB | ≧30 |
| VSWR | ≤1.6 |
| Input Impedance-Ω | 50 |
| Polarization | Vertical and Horizonta |
| Max power -W | 100 |
| Lightning protection | DC ground |
| Mechanical Specification | |
| Size -mm | 0.6*0.9 |
| Antenna weight-kg | 3.2 |
| Working Temperature -°c | -40～60 |
| Rod diameter-mm | Φ50~70 |
