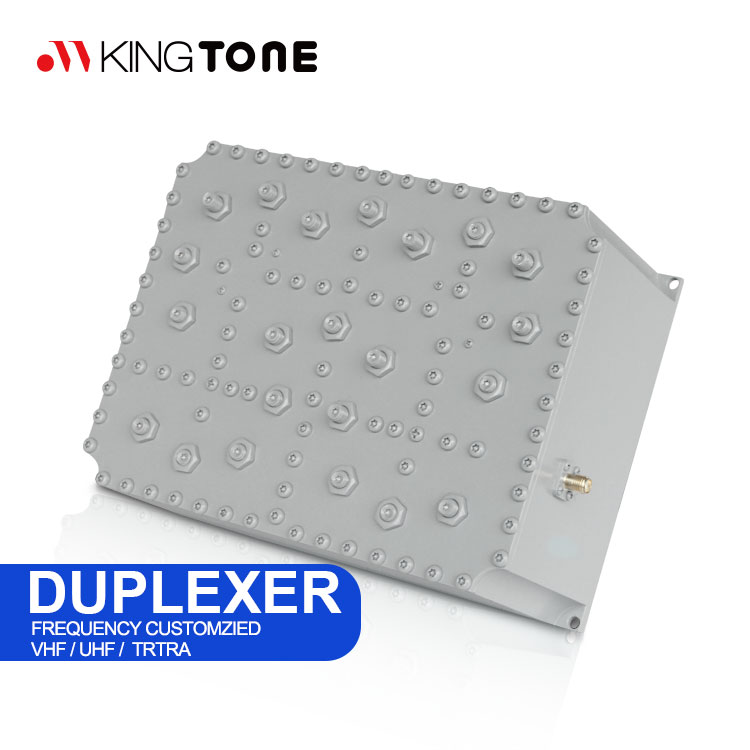

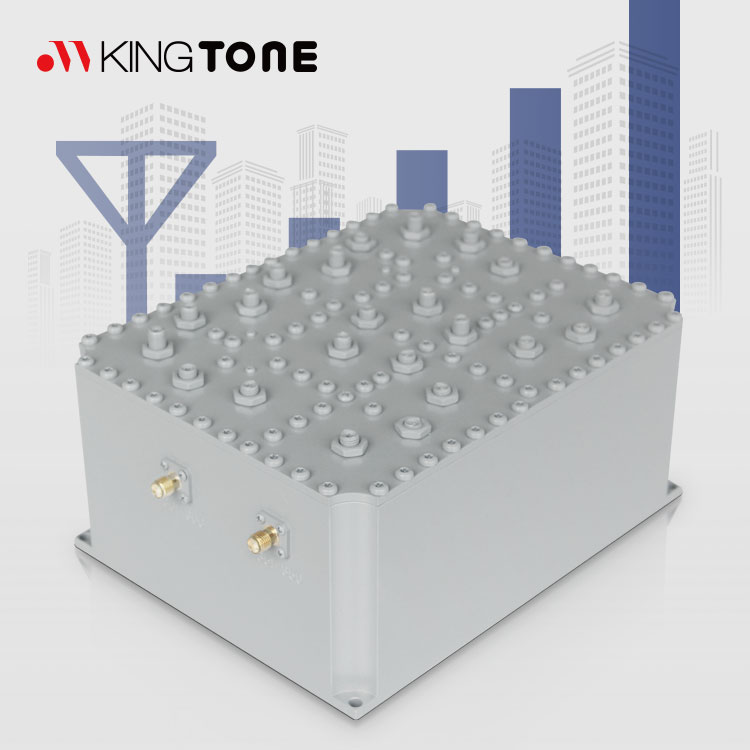

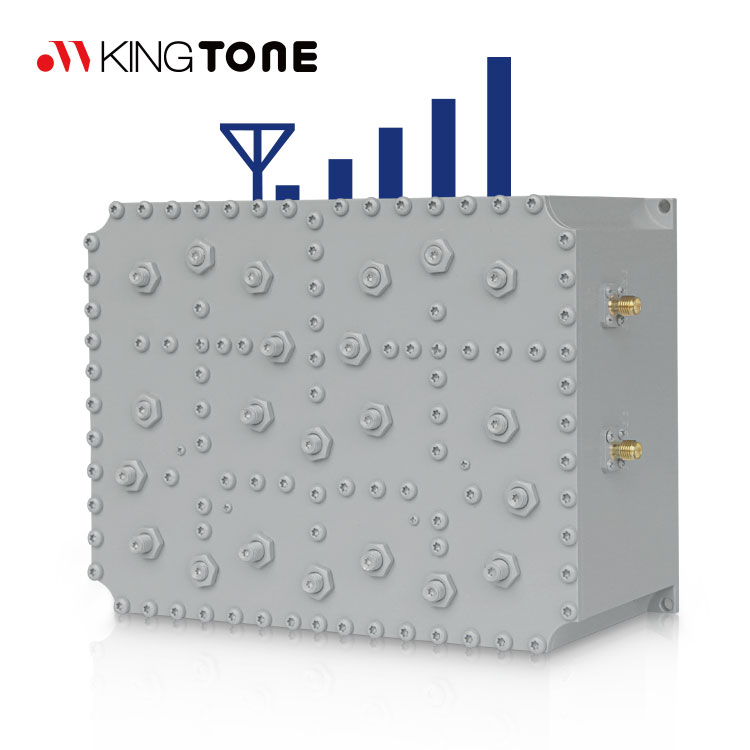

High Quality Band Pass 100W 380-385 MHz 390-395 MHz Cavity Duplexer for UHF Band

Short Description:

Key technical parameters below: • Frequency Range: – RX: 380–385 MHz – TX: 390–395 MHz • Isolation/Rejection: ≥85 dB (high-rejection performance) Main Features ◇ High-Quality cavity; ◇ High pass though power,>100W; ◇ High RX and RX band rejection,>85dB; ◇ Low insertion loss; ◇ Coated with anti-corrosion vinyl; ◇ Wide operation temperature range -40~+85 Centigrade; Applications Repeater, Base station, Transceiver. Technical Specifications Fr...

Brand: Kingtone/JIMTOM

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Warranty: 12months

Send email to us Download as PDF

Product Detail

Product Tags

Key technical parameters below:

• Frequency Range:
– RX: 380–385 MHz
– TX: 390–395 MHz
• Isolation/Rejection: ≥85 dB (high-rejection performance)

Main Features

◇ High-Quality cavity;

◇ High pass though power,>100W;

◇ High RX and RX band rejection,>85dB;

◇ Low insertion loss;

◇ Coated with anti-corrosion vinyl;

◇ Wide operation temperature range -40~+85 Centigrade;

Applications

Repeater, Base station, Transceiver.

Technical Specifications

Frequency range	380-385 MHz 390-395 MHz
Duplex Space	10MHz
Bandwidth	≤5MHz
Insertion loss	≤1.5dB
In-band ripple	≤1.0dB
VSWR	≤1.3
Isolation	≥85dB
Maximum of input power	100

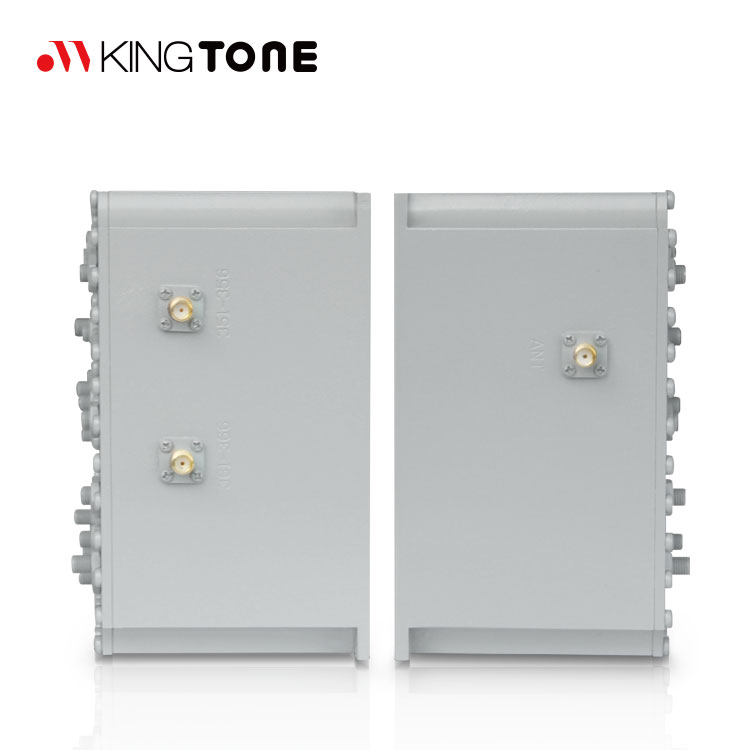

Connector type	N-K(F)

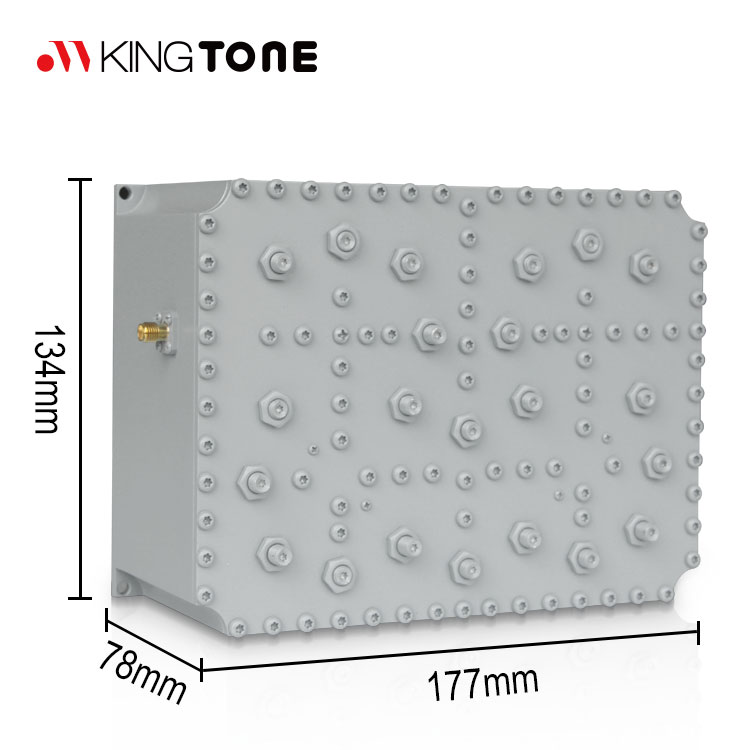

Dimensions（DWH）mm	See the appearance drawing
Weight（Kg）	1.5
Working temperature （℃）	-25–+55℃
