External Long Range Omni-Directional 2.4G/5.8G 12dBi Antennas for WiFi 6 Extender/Access Point/Security Camera/Routers

Short Description:

Feature： ● Exquisite appearance ● Good impact resistance，waterproofing and anticorrosion ability ● Full day working ● Optimized dimension ● High gain，low standing wave，strong anti-interference ability Application： 1，2.4GHz & 5.8GHz system 2，WiFi system 3，Point-to-multipoint system Technical Specification: KT-2400/5800-9 Electrical Specifications Frequency range（MHz） 2400-2483MHz /5150-5800MHZ Bandwidth（MHz） 83MHz / 650MHz Gain（dBi） 9DBI Half-power beam...

Brand: Kingtone/JIMTOM

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Warranty: 12months

Send email to us Download as PDF

Product Detail

Product Tags

Feature：
● Exquisite appearance
● Good impact resistance，waterproofing and anticorrosion ability
● Full day working
● Optimized dimension
● High gain，low standing wave，strong anti-interference ability

Application：
1，2.4GHz & 5.8GHz system
2，WiFi system
3，Point-to-multipoint system

Technical Specification:

KT-2400/5800-9 Electrical Specifications
Frequency range（MHz）	2400-2483MHz /5150-5800MHZ
Bandwidth（MHz）	83MHz / 650MHz
Gain（dBi）	9DBI
Half-power beam width（°）	H:360 V:9
VSWR	≤1.5
Input Impedance（Ω）	50
Polarization	Vertical
Maximum input power（W）	100
Lightning protection	DC Ground

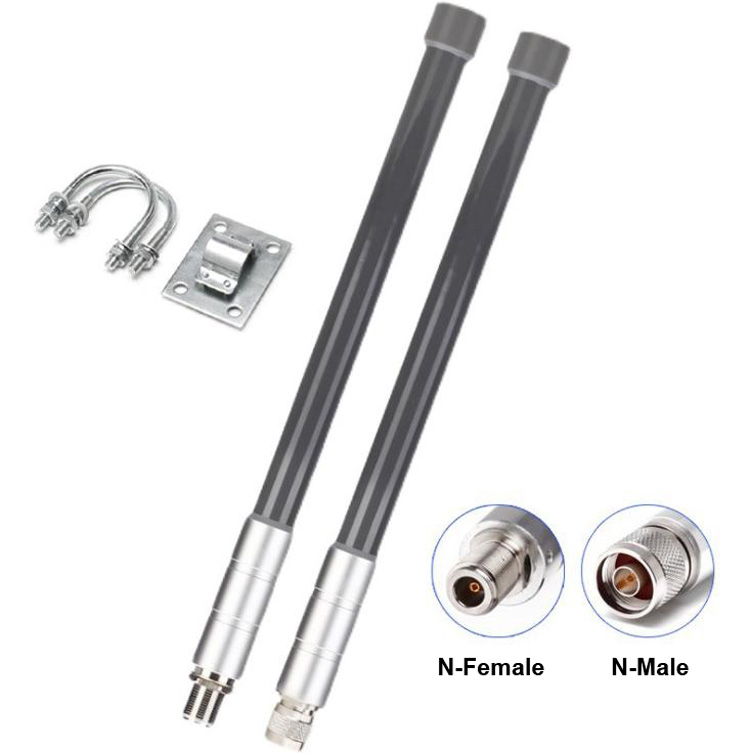

Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ32*750MM
Antenna weight（kg）	0.45
Operating temperature（°c）	-40～60
Rated Wind Velocity（m/s）	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware（mm）	￠35-￠50
