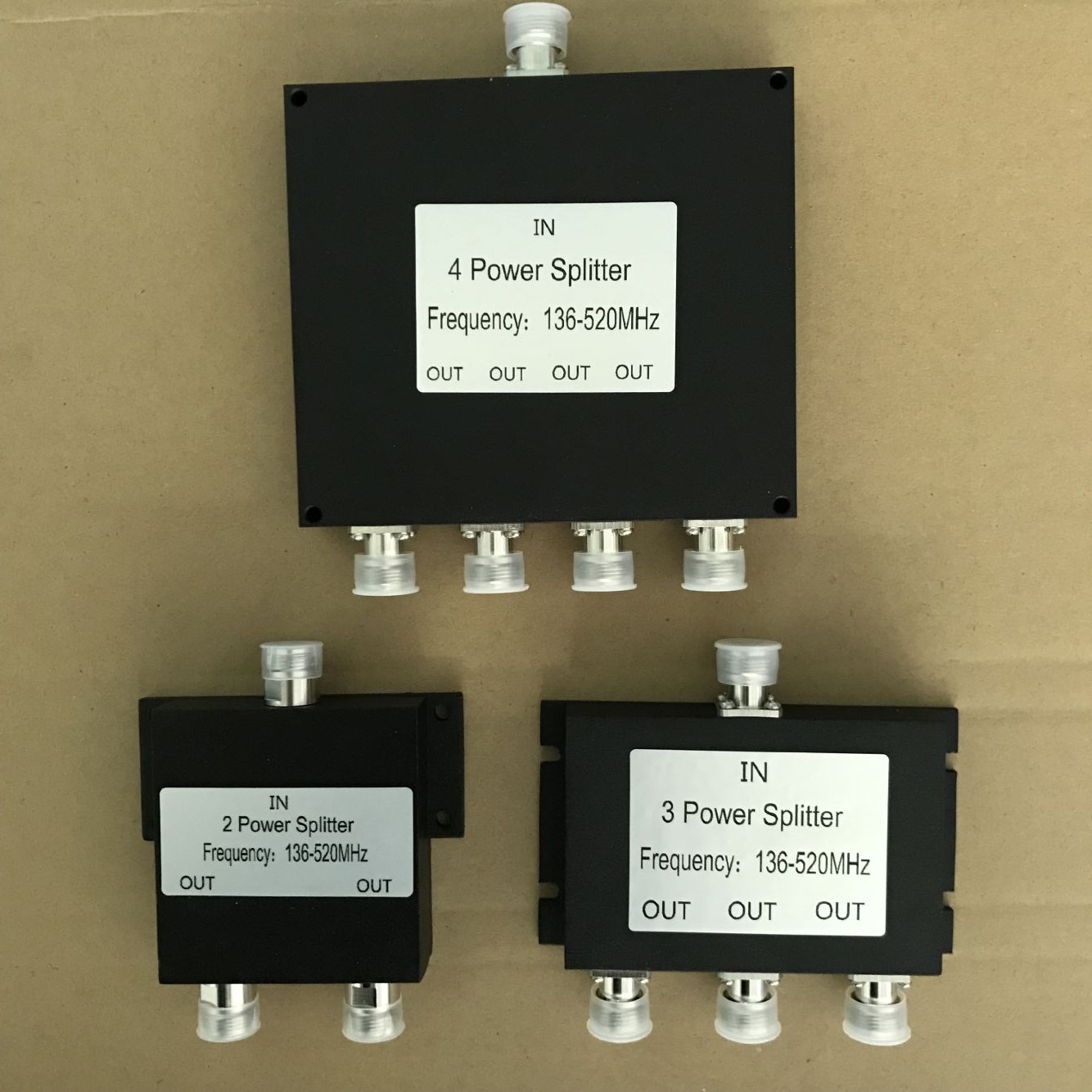

Customized VHF UHF 136~520MHz 2/3/4 way Micro-strip power divider/ splitter work for Walkie Talkie Repeater Coverage Systems
Technical Data
|
Split Loss |
4.8dB |
|
Insertion Loss |
0.6dB |
|
VSWR max |
1.4 |
|
Isolation |
18dB |
|
Impedance |
50Ω |
|
RF Connector |
N-F |
|
Average Power |
50W |
|
Temperature |
-20~+70 ℃ |
|
Weight |
0.35 Kg |
|
Dimension |
120×107×21 mm |
Applications:
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment systems.
