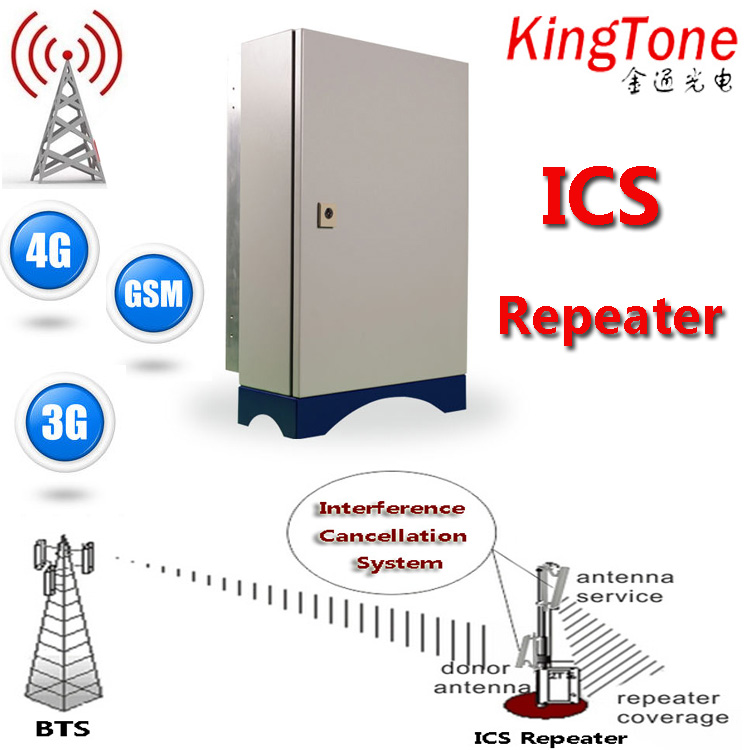

Kingtone ICS Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage of weak mobile signal, which is much cheaper than adding a new Base Station (BTS).
Kingtone ICS Repeater can automatically cancel the interference signals caused by oscillation of RF feedback. The ICS Repeater (Interference Cancellaton System) is a new kind of single-band RF repeater that can automatically detect and cancel the interference signals caused by oscillation of RF feedback between the Donor and Coverage Antennas in real time by adopting DSP (Digital Signal Processing) technology. It can continuously and stably cancel the interference signals and be adapted to any changes in the surrounding RF environment.
As the RF Repeater, the ICS Repeater is working as a relay between the BTS and mobiles. It picks up the signal from the BTS via the Donor ANtenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna (or the indoor Signal Distribution System) to the weak/blind coverage area. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
|
Items |
Testing Condition |
Specification |
|||
|
Uplink |
Downlink |
||||
|
Working Frequency(MHz) |
WCDMA1900 |
Nominal Frequency |
1860.9-1869.8MHz |
1940.9-1949.8MHz |
|
|
LTE1700 |
1710 – 1730MHz |
2110 - 2130MHz |
|||
|
NO.s of Channel |
WCDMA1900 |
2CH |
|||
|
Bandwidth |
LTE1700 |
5MHz/10MHz/15 MHz/20MHz |
|||
|
Gain(dB) |
Nominal Output Power-5dB |
95±3 |
|||
|
Output Power (dBm) |
modulating signal |
33 |
37 |
||
|
ALC (dBm) |
Input Signal add 20dB |
△Po≤±1 |
|||
|
Noise Figure (dB) |
Working in-band（Max. Gain） |
≤6 |
|||
|
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3.0 |
|||
|
Time Delay (us) |
Working in-band |
≤6 |
|||
|
IMD(dBc) |
Working in-band |
-45 |
|||
|
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
|||
|
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
|||
|
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
||
|
20dB |
Nominal Output Power -5dB |
±1.0 |
|||
|
30dB |
Nominal Output Power -5dB |
±1.5 |
|||
|
Out of Band Gain |
Comply with 3GPP |
||||
|
Spectrum Emission Mask |
Comply with 3GPP |
||||
|
Spurious Emission |
Comply with 3GPP |
||||
|
ACRR |
≥20dBc/30KHz@±5MHz & ±10MHz |
≥33dBc/30KHz@±5MHz & ±10MHz |
|||
|
EVM |
≤12.5% |
||||
|
Peak Code Domain Error |
≤-35dB@Spreading Factor 256 |
||||
|
Frequency Stability |
≤±0.01 ppm |
||||
|
VSWR |
BS/MS Port |
1.5 |
|||
|
I/O Port |
N-Female |
||||
|
Impedance |
50ohm |
||||
|
Operating Temperature |
-25°C ~+55°C |
||||
|
Relative Humidity |
Max. 95% |
||||
|
Power Supply |
DC-24V/AC220V(50Hz)/AC110V(60Hz)( ±15%) |
||||
|
Power Consumption |
≤400 W |
||||
|
Dimensions |
750*500*310mm |
||||
|
Weight |
≤40kgs |
||||
|
IP Rating |
IP65 |
||||
|
Remote Monitoring Function(Option) |
Real-time alarm for Door Status, Temperature, VSWR, Output Power |
||||
|
Remote Control Module(Option) |
Via Wireless Modem |
||||
