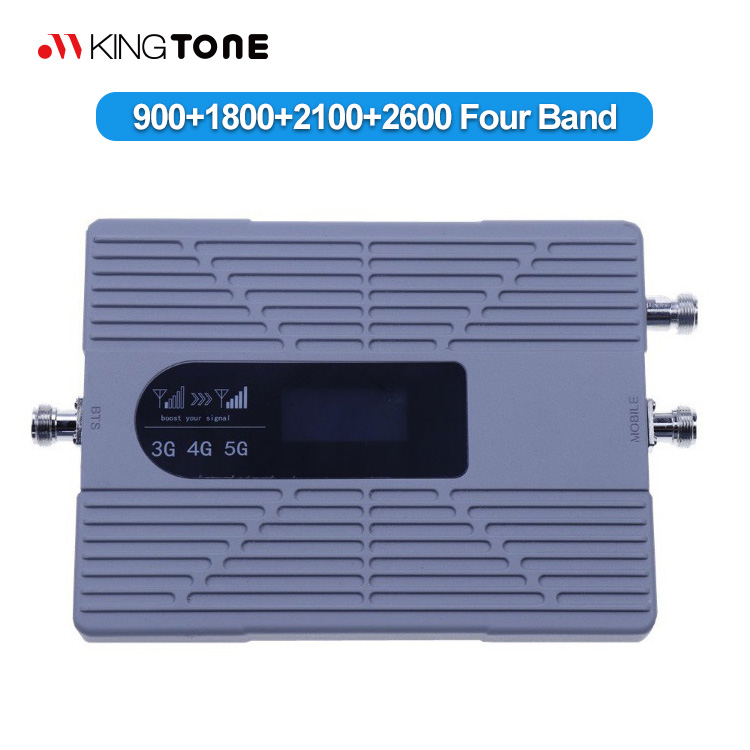

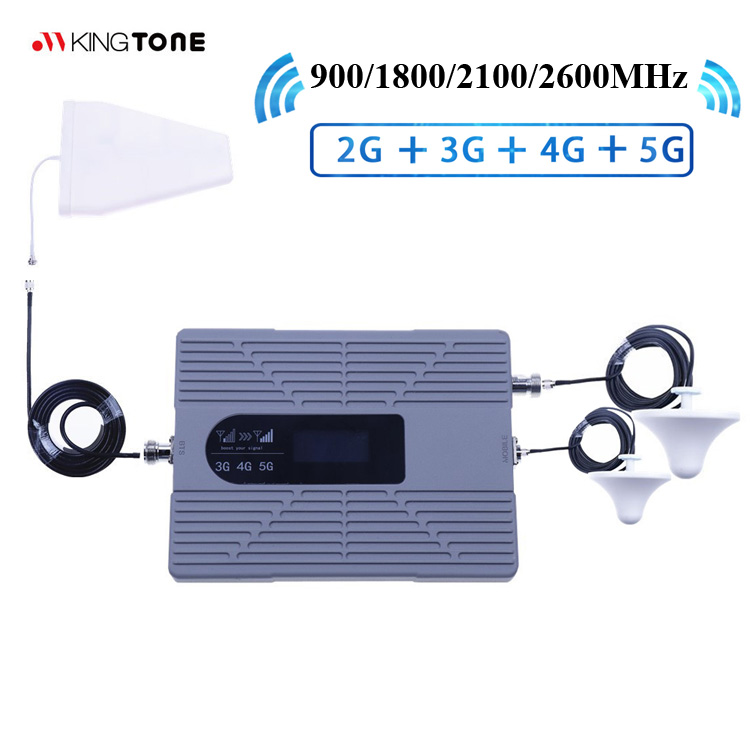

New 4 Band 3G 4G 5G Mobile Signal Booster GSM DCS WCDMA LTE 900 1800 2100 2600 Network Amplifier Repeater with 2 Antennas

Short Description:

This booster is suitable for GSM900mhz DCS1800mhz WCDMA2100mhz LTE2600MHZ frequency band. It can boost 2G 3G voice 4G data. Perfect for 1 – 2 room or small offices: Say goodbye to dropped calls in your home. 2.Frequency Range: Band8 -B8 (GSM900): UL:890~915mhz;DL:935~960mhz; Band3 -B3 (DCS1800): UL:1710~1785mhz;DL:1805~1880mhz; Band1 -B1 (WCDMA 2100): UL:1920~1980mhz;DL:2110~2170mhz; Band7 -B7 (LTE2600): UL:2500~2570mhz;DL:2620~2690mhz; 3.With LCD Display , can indicate the signal stat...


  • Brand: Kingtone/JIMTOM
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Warranty: 12months
  • Product Detail

    Product Tags

    2Ports-Booster.8This booster is suitable for GSM900mhz DCS1800mhz WCDMA2100mhz LTE2600MHZ frequency band.
    It can boost 2G 3G voice 4G data.

    Perfect for 1 – 2 room or small offices: Say goodbye to dropped calls in your home.

    2Ports-Booster.3
    2.Frequency Range:
    Band8 -B8 (GSM900): UL:890~915mhz;DL:935~960mhz;
    Band3 -B3 (DCS1800): UL:1710~1785mhz;DL:1805~1880mhz;
    Band1 -B1 (WCDMA 2100): UL:1920~1980mhz;DL:2110~2170mhz;
    Band7 -B7 (LTE2600): UL:2500~2570mhz;DL:2620~2690mhz;
    3.With LCD Display , can indicate the signal status.
    4.Coverage area: cover about 300-500sqm without barrier.1 antenna cover about 100-150sqm.
    5.High linear design, ALC technology.

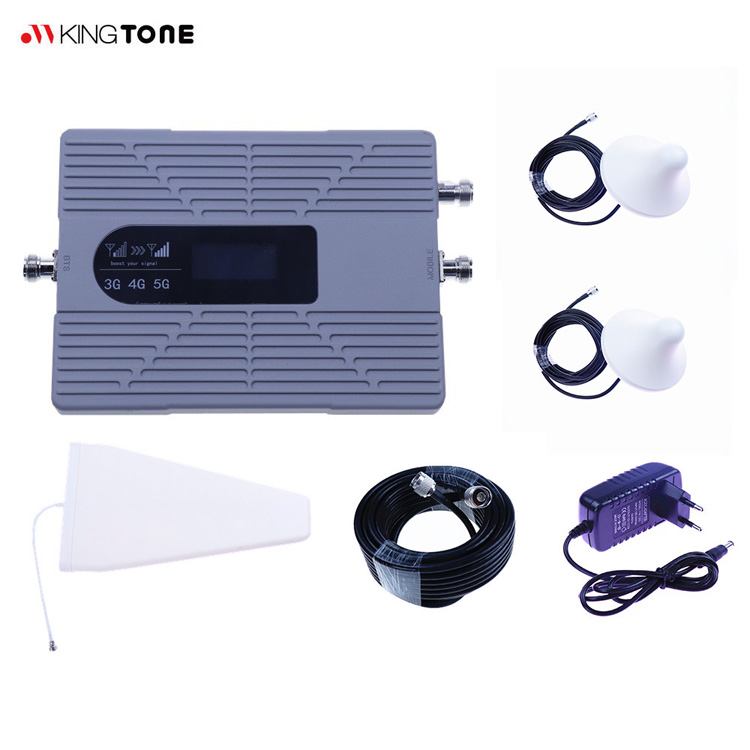

    6.1 set should with 2G 3G 4G outdoor antenna,2G 3G 4G indoor antenna, signal repeater. Ideal for home used. (Customized antennas & cable length, more details,please contact with Anna: WhatsApp +86 15392188577)
    7.Improve Indoor mobile signal,no more dropping calls,no more bad network speed.

    2Ports-Booster.6

    2Ports-Booster.5

    2Ports-Booster.7

    2Ports-Booster.4

    Parameter data
    Uplink
    Downlink
    Frequency Range
    GSM
    890–915 MHz
    935– 960 MHz
    DCS
    1710~1785 MHz
    1805~1880 MHz
    WCDMA
    1920~1980 MHz
    2110~2170 MHz
    LTE(B7)
    2500~2570 MHz
    2620~2690 MHz
    Output Power
    18 ±2dBm
    20 ±2dBm
    Gain
    65±2 dB
    70±2dB
    Ripple in Band
    ≤3dB
    Intermodulation Products
    9KHz~1GHz
    ≤ -36 dBm
    1GHz~12.75GHz
    ≤ -30 dBm
    Spurious Emission
    9KHz~1GHz
    ≤ -36 dBm
    1GHz~12.75GHz
    ≤ -30 dBm
    Noise Figure
    ≤ 6 dB
    VSWR
    ≤2
    Power Supply
    AC:100~240V, 50/ 60Hz;DC:12V 4A
    Power Comsumption
    < 48W
    Impedance
    50 ohm
    Mechanical Specification
    RF Connector
    N-Female
    Dimensions (D x W xH )
    340*200*60mm
    Weight
    ≤ 1.2Kg
    Operating Temperature
    -10℃ ~ 55℃
