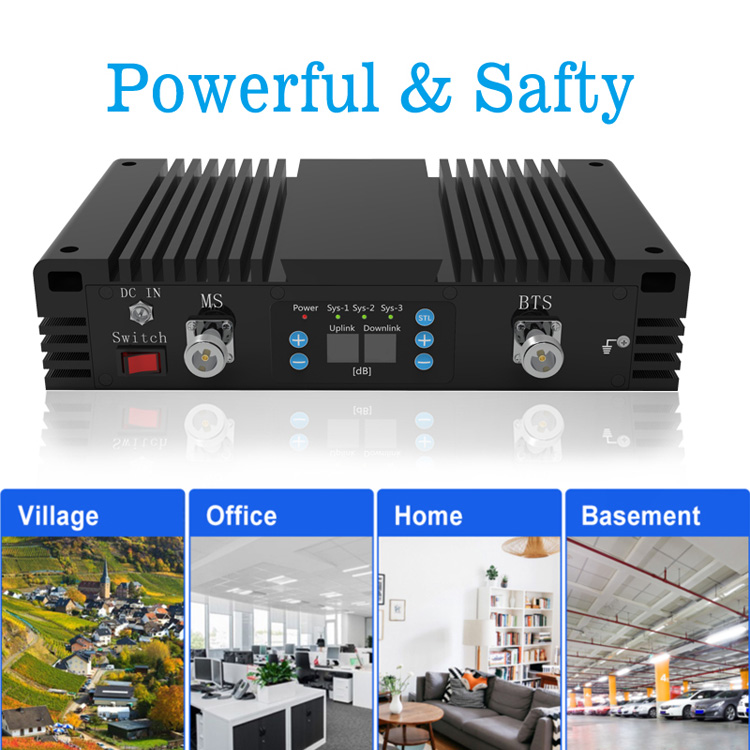

Features:
1. With unique appearance design, have good cooling function;
2. With LCD display , we can know the unit gain and output power clearly;
3. With DL signal LED display, help to install the outdoor antenna at the best state;
4. With AGC and ALC, make repeater work stable;
5. Low intermodulation, high Gain ,stable Output power;
Specification:
| Electrical specification | Uplink | Downlink | |
| Frequency Range | 400MHz | 415 ~418 MHz | 425 ~ 428 MHz |
| Max .Gain | ≥ 70dB | ≥ 75dB | |
| Max .Output Power | ≥ 23dBm | ≥ 27dBm | |
| MGC ( Step Attenuation ) | ≥ 31dB / 1dB step | ||
| Automatic Level Control | ≥ 20dB | ||
| Noise Figure | ≤ 5dB | ||
| VSWR | ≤ 2.0 | ||
| Group Delay | ≤ 1.5μs | ||
| Frequency stability | ≤ 0.01ppm | ||
| Mechanical Specifications | Standard | ||
| I /O Port | N-Female | ||
| Impedance | 50 ohm | ||
| Operating Temperature | -25ºC~+55ºC | ||
| Environment Conditions | IP40 | ||
| Dimensions | 268*220*54mm | ||
| Weight | ≤ 3.50Kg | ||
| Power Supply | Input AC100~240V,output DC9V / 3A | ||
